Mating pin length is 0.264" (6.70mm) — long enough for a secure wipe with a standard 0.100" pitch receptacle, but short enough to keep the mated stack height within a tight z-height budget. The solder post length of 0.126" (3.20mm) suits standard 1.6mm-thick PCBs; the pins protrude enough for a reliable solder fillet on the bottom side without bottoming out in the hole.

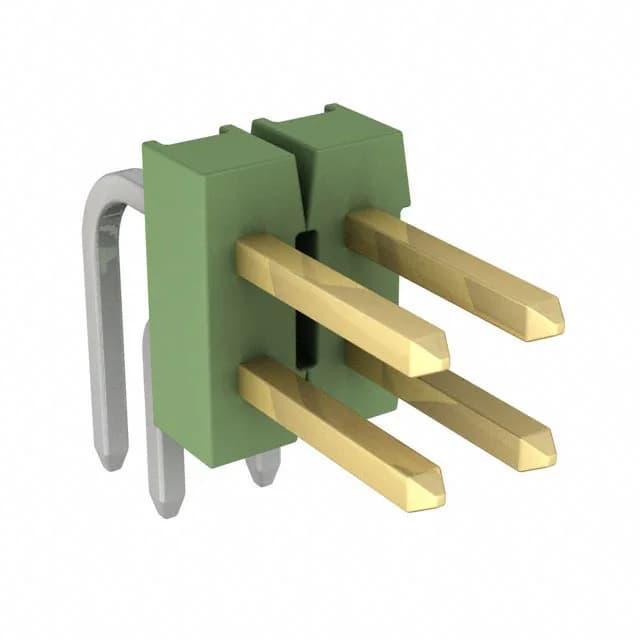

826634-2 TE Connectivity AMPMODU Mod II Header, 4 Pos
MPN826634-2
Active
TE Connectivity AMPMODU Mod II, 826634-2, Header, Breakaway, 4 circuits, 0.100" (2.54mm) pitch, 2 rows, right-angle through hole, gold-plated mating, 5A, -65°C to 105°C, UL94 V-0.
$0.4158Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.219\" (5.56mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
Is 826634-2 shrouded or unshrouded?
It is unshrouded — the pins are exposed above the insulation base.
