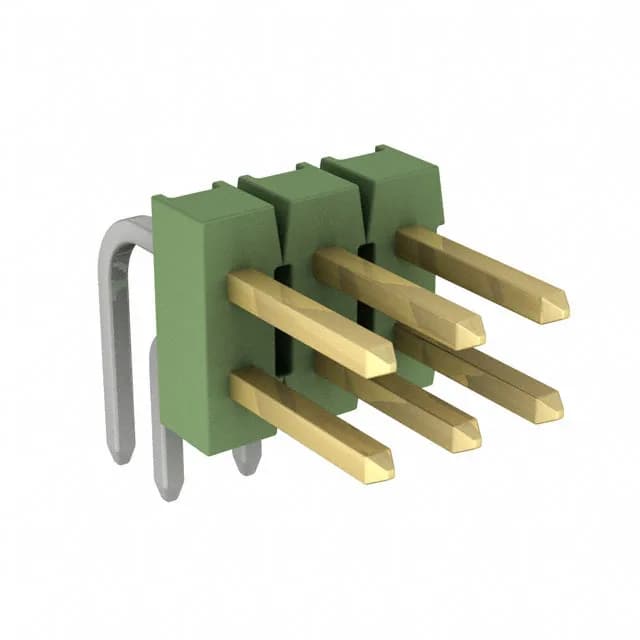

TE Connectivity AMP Connectors AMPMODU Mod II, 826634-3, Header Breakaway, 6 Positions, 2.54 mm Pitch, Through Hole Right Angle, Gold Mating, Tin Post, 5 A, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.219\" (5.56mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Six positions loaded across two rows — all positions are active. The unshrouded, push-pull fastening style mates with standard AMPMODU Mod II socket housings without a locking ramp.
Yes. The 0.100" pitch, dual-row layout, and unshrouded profile are designed to mate with AMPMODU Mod II socket housings and IDC receptacles. Confirm the receptacle's position count matches the 6-position header.
