Current Rating and Thermal Limits at 5A per Contact
In a 14-position fully loaded connector, the total current budget is 70 A distributed across the two rows, but derate if the ambient exceeds 85°C.
Mating Half and Termination Style
Termination is solder-only — the 0.126" (3.20mm) post length fits a standard 1.6mm PCB thickness with enough tail protrusion for a reliable fillet. No press-fit option here; the through-hole tails are meant for wave or hand solder.

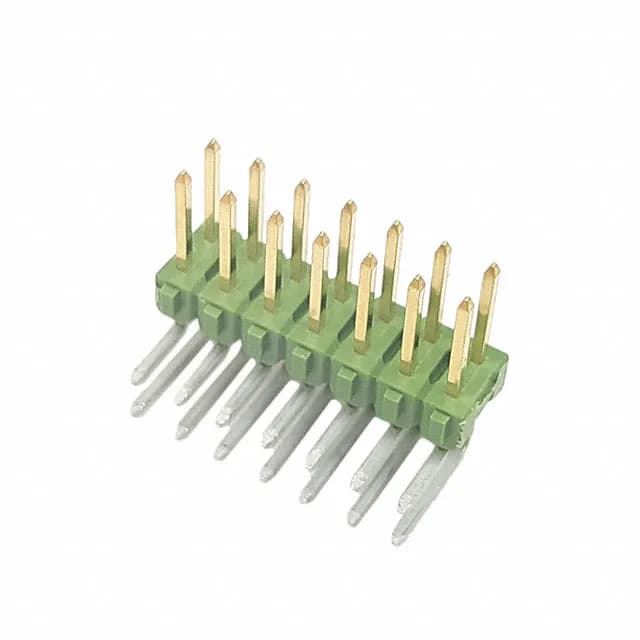

The base product number 826634 covers the full position range in this breakaway family; the -7 suffix specifically denotes the 14-position, right-angle variant with gold mating finish.
