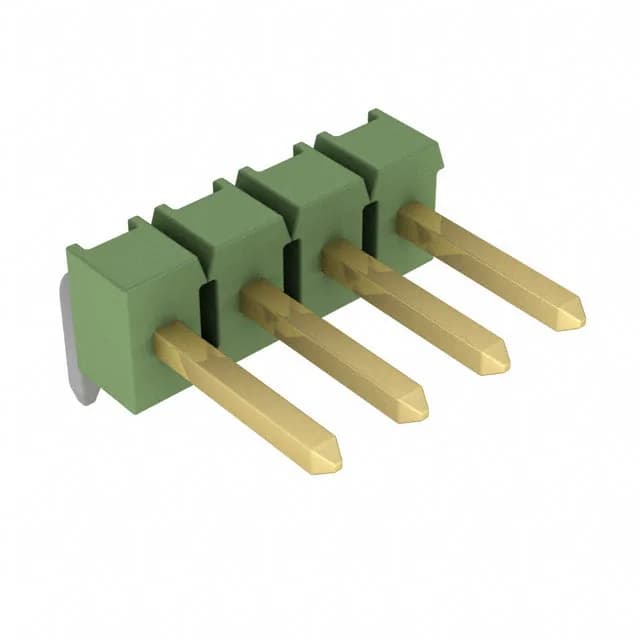

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 826652-4, 4 positions, single row, 0.100" (2.54mm) pitch, 5 A, gold-plated mating contacts, through-hole right-angle, solder termination.
TE 826652-4 Header, 4-Pos, 2.54mm, Obsolete
MPN826652-4
Obsolete
TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 826652-4, 4 positions, single row, 0.100" (2.54mm) pitch, 5 A, gold-plated mating contacts, through-hole right-angle, solder termination.
$1.3800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.120\" (3.05mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
What compliance documentation does TE provide for the 826652-4?
Operating temperature range is -65°C to 105°C.
