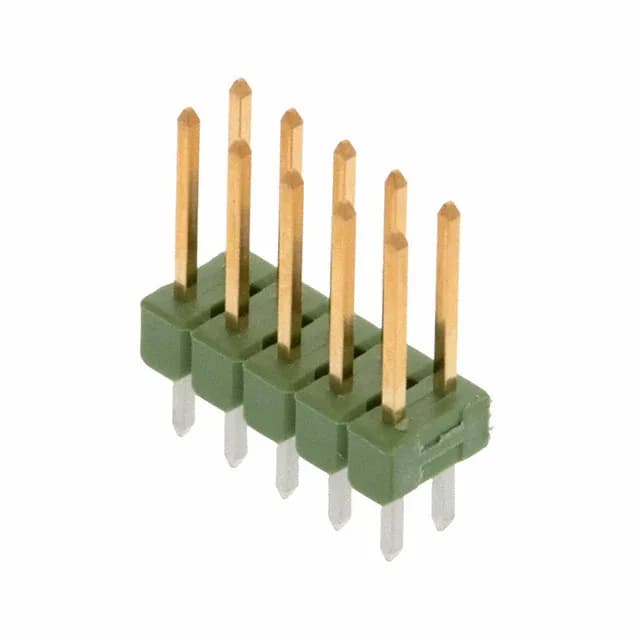

TE Connectivity AMPMODU Mod II, 10-position, 2-row, 0.100" (2.54 mm) pitch, unshrouded breakaway header, through-hole solder termination, gold mating contact finish, 5 A, UL94 V-0, green PBT insulator.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.551\" (14.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.315\" (8.00mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Unshrouded male pins with a 0.315" (8.00 mm) mating length and 0.126" (3.20 mm) solder post — the post length suits standard 1.6 mm PCBs; the mating length gives good wipe depth in a matching receptacle.
Gold on the mating face (3.90 µinch / 0.099 µm), tin on the solder tail (118.1 µinch / 3.00 µm).
826658-5 is an active TE part, sourced through independent distribution. No stock-holding claim; availability is lot-specific.
Yes, it is ROHS3 compliant per the manufacturer's listing.
The header is unshrouded and mates with standard 0.100-inch receptacles.
