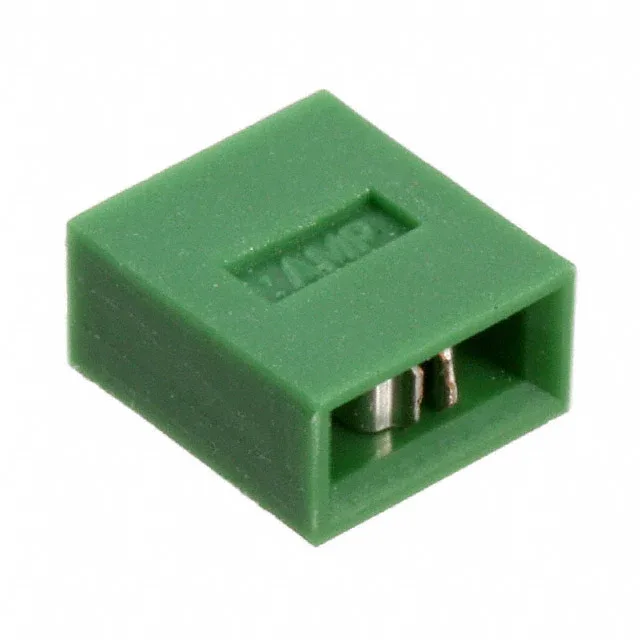

TE Connectivity AMP Connectors AMPMODU Mod I, Open Top shunt assembly, 1 (1 x 1) position, tin-plated contacts, UL94 V-0 green nylon housing, 0.315" (8.00 mm) height.
| Parameter | Value |
|---|---|
| Type | Open Top |
| Series | AMPMODU Mod I |
| Color | Green |
| Height | 0.315\" (8.00mm) |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Gender | Female Sockets |
| Package | Bulk |
| Contact finish | Tin |
| Number of positions or pins | 1 (1 x 1) |
The 826853-1 is a single-position open top shunt from the AMPMODU Mod I series, designed to short adjacent.025-inch square header pins on a 0.100-inch pitch grid. The open top allows probe access or visual inspection after installation. Height is 0.315" (8.00 mm), which clears most standard shrouded headers.
The 826853-1 is sourced to order through independent distribution. Submit an RFQ for current pricing and lead time — no stock-holding claim is made here.
