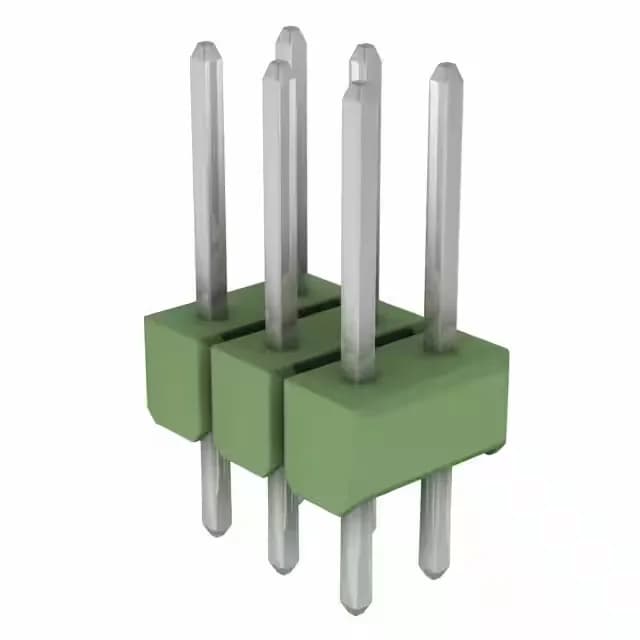

TE Connectivity AMPMODU Mod II header, order code 826925-3, 6 positions, dual row, 0.100" (2.54mm) pitch, 5 A, tin-plated male pins, through-hole vertical, solder termination.
826925-3 TE AMPMODU Mod II Header, 6 Pos 2.54mm
MPN826925-3
Active
TE Connectivity AMPMODU Mod II header, order code 826925-3, 6 positions, dual row, 0.100" (2.54mm) pitch, 5 A, tin-plated male pins, through-hole vertical, solder termination.
$0.7900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
What compliance documentation is available for 826925-3?
The housing material is rated UL94 V-0.
