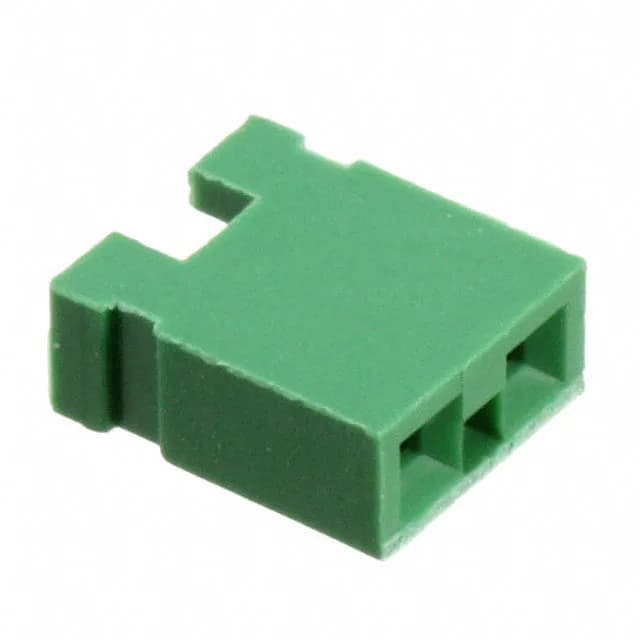

TE Connectivity AMP Connectors AMPMODU Mod IV, 827914-1, Open Top shunt jumper, 2 positions (1 x 2), 0.100" (2.54mm) pitch, Female Sockets, Gold contact finish, Green housing, UL94 V-0, 3A
| Parameter | Value |
|---|---|
| Type | Open Top |
| Series | AMPMODU Mod IV |
| Current rating | 3A |
| Color | Green |
| Height | 0.236\" (6.00mm) |
| Housing material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female Sockets |
| Package | Bulk |
| Contact finish | Gold |
| Number of positions or pins | 2 (1 x 2) |
The 827914-1: Rated 3A per contact, it suits signal-level configuration jumpers on prototype boards, production PCBs, and harness test fixtures where a removable short is needed.
ROHS3 compliant, with a glass-filled PA66 housing rated UL94 V-0.
The pitch is 0.100" (2.54mm), the standard spacing for most square pin headers.
Yes, it is ROHS3 compliant.
Rated 3A per contact, typical for signal-level shunt jumpers.
Any 2-position 0.100" pitch shunt jumper from the AMPMODU Mod IV series with the same contact finish and housing material is form-fit-function interchangeable. No documented cross-reference outside the series.
It is an Open Top shunt jumper, meaning the top of the housing is open for access to the contacts.
The housing is green.
