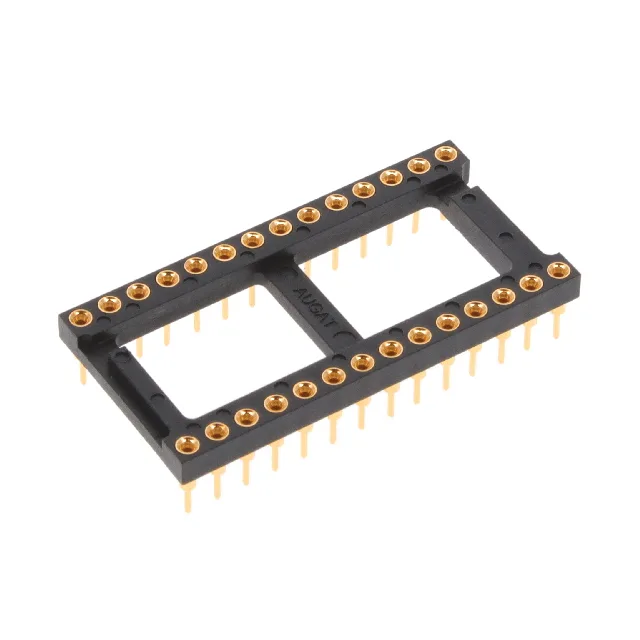

TE Connectivity AMP Connectors Series 800 DIP header, order code 828-AG10D, 28 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 800 |
| Mounting type | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polyester |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 28 (2 x 14) |
The 828-AG10D is a 28-position DIP header from TE Connectivity AMP Connectors' Series 800, arranged as a 2 x 14 grid with 0.600" (15.24 mm) row spacing.
No pin-compatible direct replacement is documented from the original manufacturer.
The 828-AG10D is available through independent surplus and broker channels. Submit an RFQ for current availability and pricing.
No pin-compatible direct replacement is documented from TE Connectivity AMP Connectors. A board spin may be required for a functional alternative.
The type is DIP, 0.6" (15.24mm) Row Spacing.
