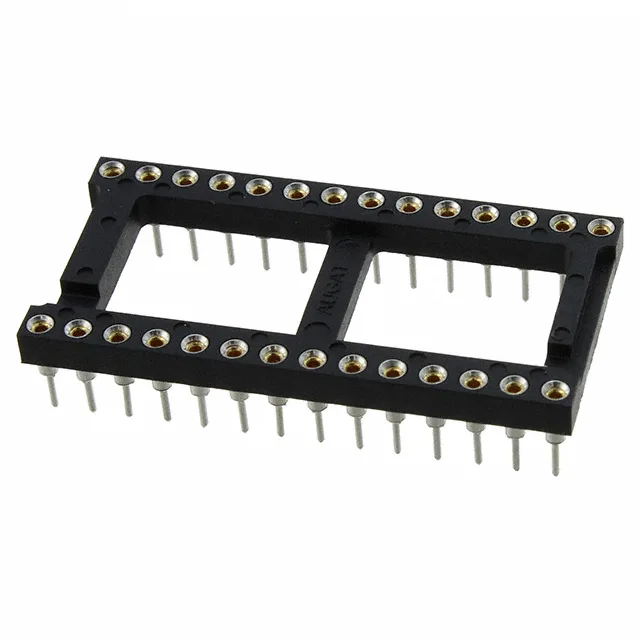

TE Connectivity AMP Connectors Series 800 DIP header, order code 828-AG11D-ES, 28 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination.
TE 828-AG11D-ES DIP Header, 28-Pos, 0.100" Pitch, Obsolete
MPN828-AG11D-ES
Obsolete
TE Connectivity AMP Connectors Series 800 DIP header, order code 828-AG11D-ES, 28 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination.
$4.5900Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 800 |
| Mounting type | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C~105°C |
| Housing material | Polyester |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 28 (2 x 14) |
Product details
Frequently asked questions
What compliance documentation does TE Connectivity AMP Connectors provide for 828-AG11D-ES?
The housing material is rated UL94 V-0. RoHS and REACH compliance status is not documented in the available records for this obsolete part.
