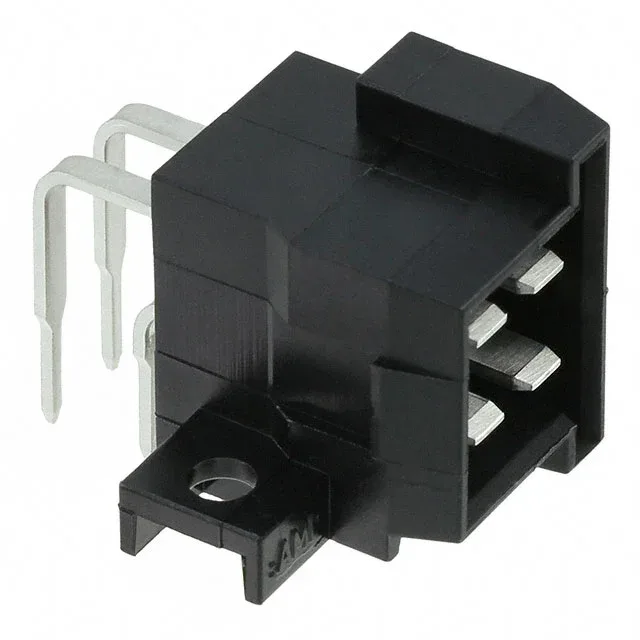

Right-angle 4-position header for Junior Power Timer harnesses
Pitch, positions, and contact finish
The brass contacts are rectangular tabs, 0.366" (9.30 mm) mating length, which provides good wipe and contact area inside the receptacle terminal. The solder post length is 0.138" (3.50 mm), enough for a standard 1.6 mm PCB with through-hole solder fillet.
Mounting and housing details
Through-hole right-angle mounting with a mounting flange on each end — the flange adds mechanical stability to the header against the insertion force of the mating connector. The black PA66 (nylon 6/6) housing carries a UL94 V-2 flammability rating, suitable for equipment inside an enclosure where a V-0 rating is not mandated.
