The 828801-4: Tin-plated mating contacts are standard for moderate-cycle applications — expect several dozen to low hundreds of matings before wear-through, which suits harness assembly and field-service connections that aren't cycled daily.

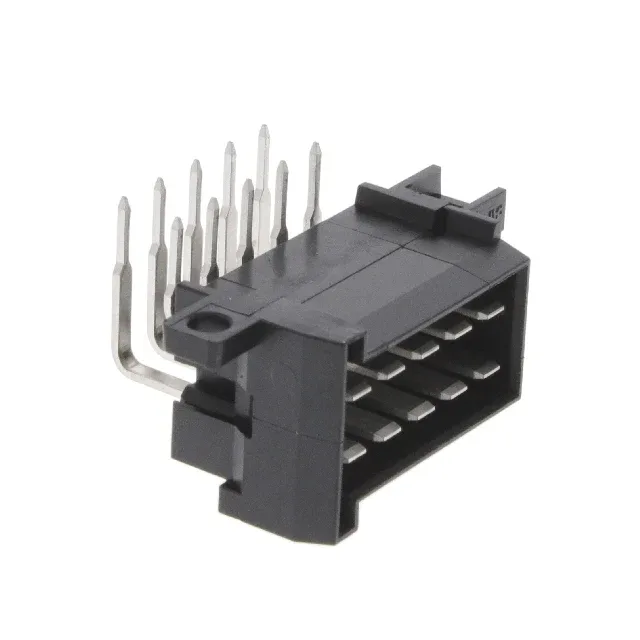

828801-4 TE Connectivity Junior Power Timer Header 10 Pos
MPN828801-4
Active
TE Connectivity AMP Connectors Junior Power Timer, 828801-4, 10-position dual-row header, 5.00 mm pitch, right-angle through-hole, shrouded - 4 wall, tin-plated contacts, UL94 V-2, -55°C to 105°C.
$6.9500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesJunior Power Timer
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug |
| Operating temperature | -55°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.748\" (19.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.366\" (9.30mm) |
Product details
Frequently asked questions
What is the mating connector for 828801-4?
The 828801-4 mates with a Junior Power Timer receptacle housing that accepts crimp terminals. The exact receptacle part number depends on circuit count and keying — check the series listing for the matching half.
Is there an equivalent to 828801-4?
The 828801-4 is a standard production part; any alternative would require a different pitch or orientation.
