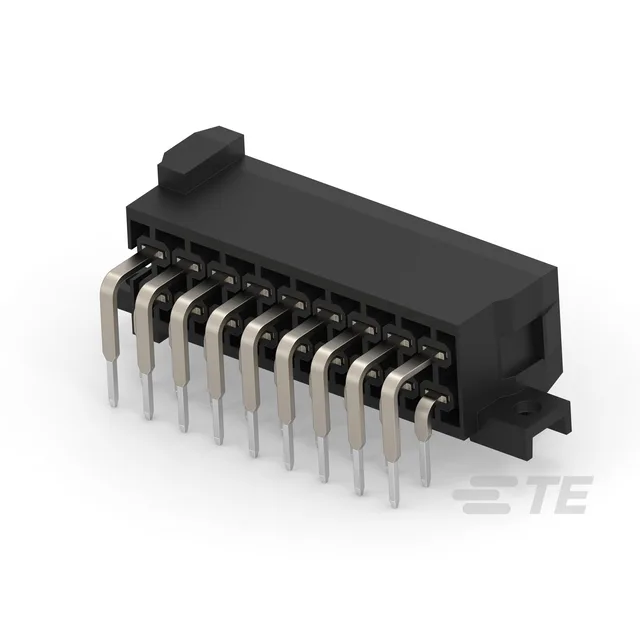

TE Connectivity AMP Connectors Junior Power Timer plug, order code 828801-6, 18 positions, dual row, 5.00 mm pitch, shrouded - 4 wall, through-hole right-angle, solder termination, tin-plated mating contacts, UL94 V-2.
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.748\" (19.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 18 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.366\" (9.30mm) |
The 828801-6's 18 positions use the same 5.00 mm pitch and 5.00 mm row spacing as other Junior Power Timer plugs; the mounting flange on this part provides additional board retention for vibration environments.
The housing material is rated UL94 V-2; RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors.
