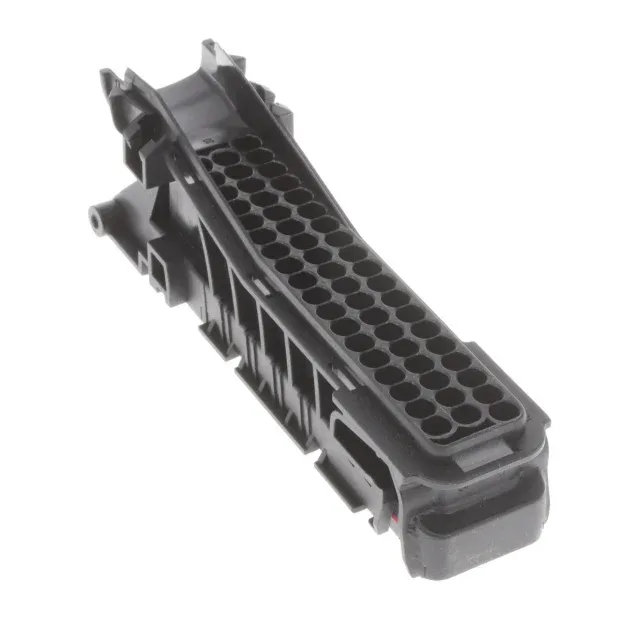

828907-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 828907-1 Junior Power Timer Receptacle, 55 Pos, 5.00mm

MPN828907-1
Active

TE Connectivity Junior Power Timer receptacle housing, 828907-1, 55 positions, 5.00mm pitch, 3 rows, female socket contacts, crimp termination, free hanging, black PBT, -40°C to 85°C.

$18.2200Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

828907-1 Technical Specifications
ParameterValue
SeriesJunior Power Timer
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-40°C ~ 85°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Row spacing0.236\" (6.00mm)
Rows3
Contact terminationCrimp
Positions55

Product details

55-Circuit Receptacle Housing for High-Density Harnesses

The 5.00 mm pitch and 0.236" (6.00 mm) row spacing pack 55 circuits into a 3-row layout — a dense footprint for a power-grade connector, meaning the harness builder needs to plan for adequate wire bundle clearance behind the housing.

The 3-row arrangement and keying features in the Junior Power Timer family prevent mis-mating with lower-position-count housings in the same series. The primary latch on the housing provides audible lock confirmation during assembly.

Frequently asked questions

Where can I buy 828907-1 and what is the price?

Submit an RFQ for your target quantity and lead time.

Does 828907-1 include contacts?

No — the 828907-1 is a receptacle housing only; contacts are not included. The female socket crimp terminals must be ordered separately as a different TE part number.

What is the pitch of 828907-1?

The 828907-1 uses a 0.197" (5.00 mm) pitch between contacts, with a 0.236" (6.00 mm) row spacing across the 3 rows.

Is 828907-1 compatible with TE Junior Power Timer contacts?

Yes — the 828907-1 is part of the TE Junior Power Timer series and accepts the standard female socket crimp contacts designed for that family. Verify the specific terminal part number against your wire gauge and application current requirements.
