TE Connectivity AMP Connectors 832-AG11D-ESL-LF — Pin Headers, Sockets & Housings

832-AG11D-ESL-LF TE Connectivity 32-Pin DIP Header –

MPN832-AG11D-ESL-LF
Obsolete

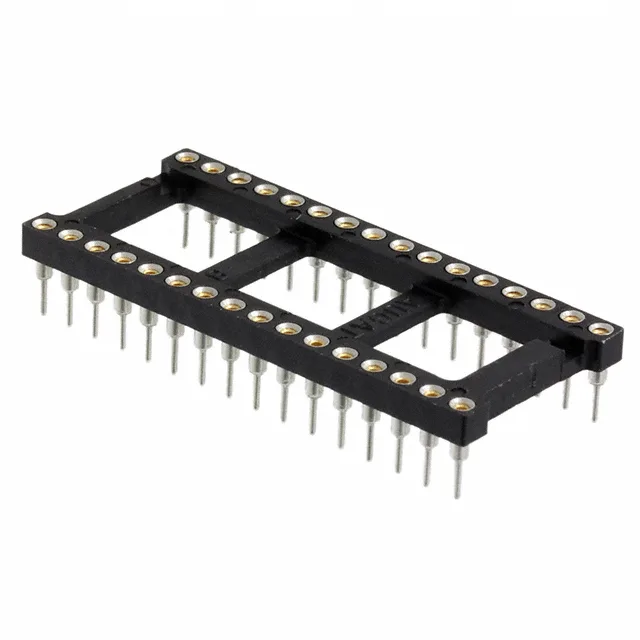

TE Connectivity AMP Connectors 832-AG11D-ESL-LF, Series 800, 32-position (2 x 16) DIP header, 0.100" (2.54 mm) pitch, through-hole solder termination, open-frame polyester housing, gold flash mating contacts, 3 A rating.

$3.1300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 832-AG11D-ESL-LF datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

832-AG11D-ESL-LF key specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
Series800
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 105°C
Housing materialPolyester
Contact material - postCopper Alloy
Contact material - matingCopper Alloy
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder

All specifications

832-AG11D-ESL-LF additional specifications
ParameterValue
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance10mOhm
Contact finish - postTin-Lead
Contact finish - matingGold
Termination post length0.125\" (3.18mm)
Contact finish thickness - matingFlash
Number of positions or pins32 (2 x 16)

Product details

Obsolete — Sourcing Reality for 832-AG11D-ESL-LF

Available through independent distribution channels.

32-Position Dual-Row Layout and 0.100" Pitch

The 0.600" (15.24 mm) row spacing is a common DIP pattern, compatible with many production sockets and test fixtures.

Gold flash on the mating contacts — this is a thin gold layer over the base copper alloy. It provides corrosion resistance for occasional mating but does not support the high cycle life of thicker gold plating. Rated 3 A per contact, typical for signal-level circuits in this pitch class. The post side uses tin-lead solder tails, compatible with standard through-hole soldering processes.

Frequently asked questions

How can I order 832-AG11D-ESL-LF or check availability?

832-AG11D-ESL-LF is obsolete and sourced through independent distribution. No stock-holding claim is made on this page.

What is the contact finish of 832-AG11D-ESL-LF?

Gold flash on the mating contacts; tin-lead on the solder tails.

What is the current rating of 832-AG11D-ESL-LF?

3 A per contact.
