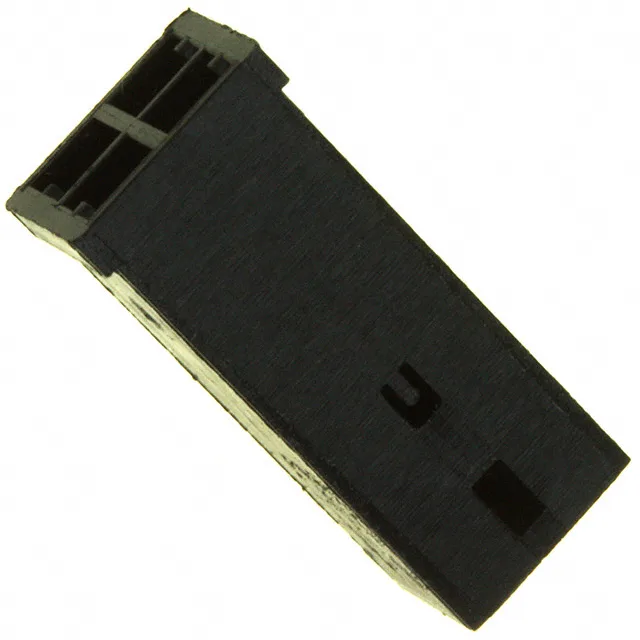

87133-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 87133-1 AMPMODU 4-Pos Receptacle Housing, 2.54mm

MPN87133-1
Active

TE Connectivity AMPMODU, 4-position receptacle housing, 0.100" (2.54mm) pitch, dual-row, free-hanging, crimp termination, black polyester housing, -65°C to 105°C.

$2.3700Ref. price · indicative, final on quote
87133-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87133-1 Technical Specifications
ParameterValue
SeriesAMPMODU
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialPolyester, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions4

Product details

What This Housing Does in the Harness

For a 4-position housing that means 4 terminals plus the wire seals if the application calls for them. A common mistake is ordering just the housing and wondering why the harness won't populate.

At 4 positions and 2 rows, this is the smallest dual-row receptacle in the 0.100" pitch AMPMODU range. The sibling 1-2333134-5 runs 30 positions at a tighter 0.079" (2.00mm) pitch — a different board footprint entirely. Stick with the 2.54mm pitch for this housing; the header pitch must match exactly.

Frequently asked questions

Is 87133-1 the correct part number for a 4-position 2.54mm TE connector housing?

Yes.

Does the 87133-1 housing include the female socket contacts?

No — contacts are not included. The housing ships empty; you must order the matching AMPMODU female crimp terminals separately to populate the 4 positions.
