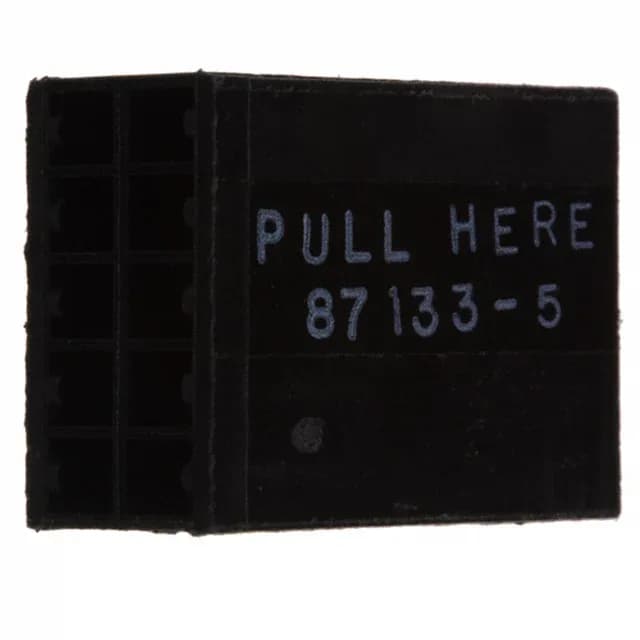

TE Connectivity AMPMODU receptacle housing, 87133-5, 10 positions, 2 rows, 0.100" (2.54mm) pitch, 0.100" (2.54mm) row spacing, free-hanging (in-line), crimp termination, female socket contacts, black polyester glass-filled housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 10 |
The 87133-5: It is a free-hanging (in-line) housing designed for crimp termination — you bring your own female socket contacts, as the listing notes they are not included.
This housing mates with a dual-row, 0.100" pitch AMPMODU header. The female socket contacts are ordered separately.
The 87133-5 mates with a dual-row, 0.100" pitch AMPMODU header — either unshrouded or shrouded breakaway headers from the same series. The header must have 10 positions (2x5) to match the housing.
