TE Connectivity AMP Connectors AMPMODU Mod I header, order code 87160-1, 5 positions, single row, 0.156" (3.96mm) pitch, 5 A, unshrouded, through-hole, solder termination, tin-lead mating contacts.

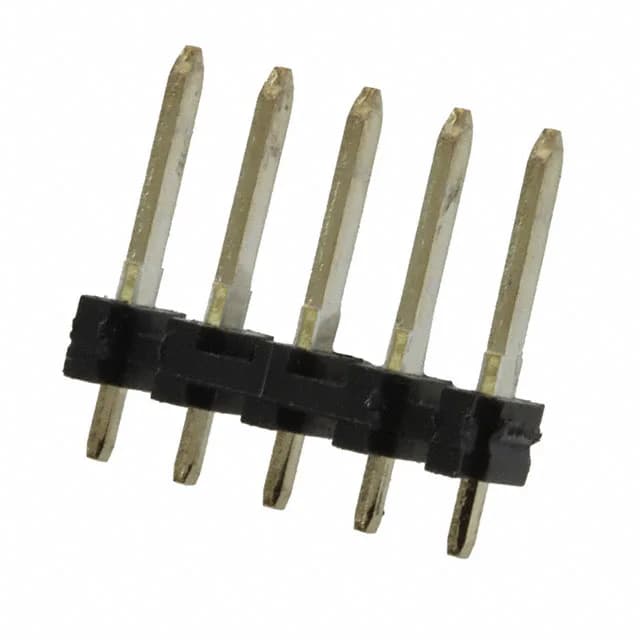

87160-1 TE AMPMODU Mod I Header, 5 Pos, 3.96mm
MPN87160-1
Active
TE Connectivity AMP Connectors AMPMODU Mod I header, order code 87160-1, 5 positions, single row, 0.156" (3.96mm) pitch, 5 A, unshrouded, through-hole, solder termination, tin-lead mating contacts.
$1.2869Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.125\" (3.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.655\" (16.64mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.405\" (10.29mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
