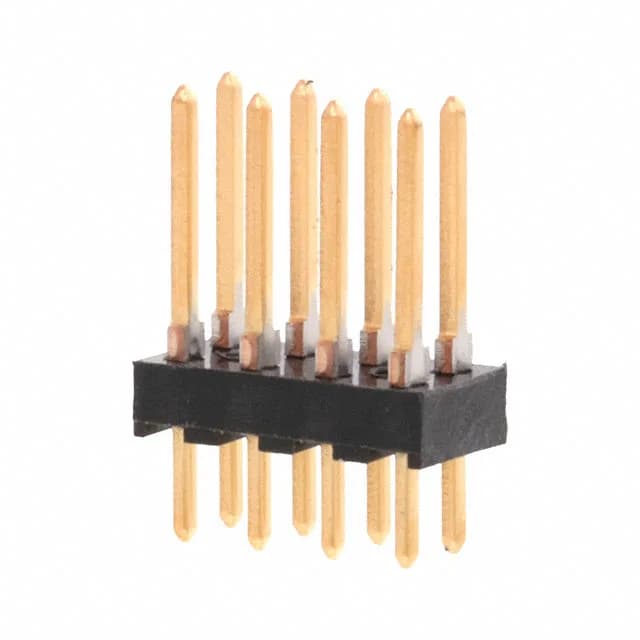

TE Connectivity AMP Connectors AMPMODU Mod II header, 87215-1, 8 positions, 2.54mm pitch, unshrouded, through hole, male pin, gold mating finish, 3A rated, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 87215-1 is an 8-position, dual-row header from the AMPMODU Mod II series, on a standard 0.100-inch (2.54 mm) pitch. The through-hole solder termination suits wave-solder assembly on a standard 0.062-inch board.
The post length is short — typical for a standard through-hole board thickness — so confirm the board thickness and solder fillet clearance before layout.
