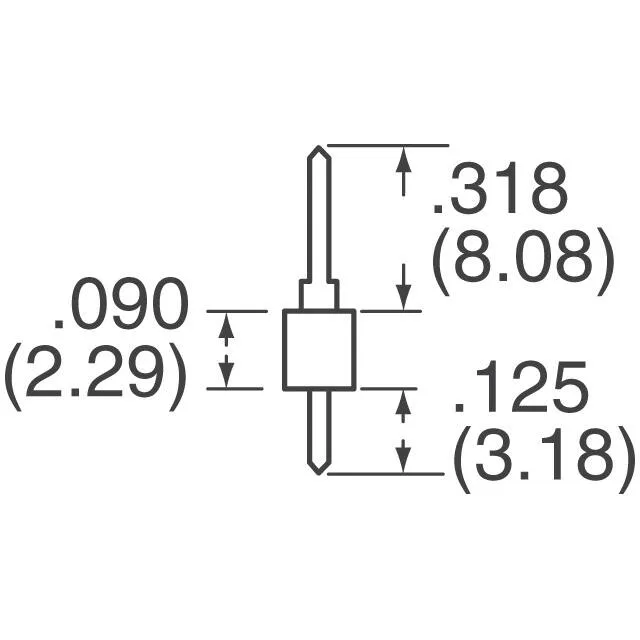

87220-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

87220-1 TE Connectivity AMP Connectors Header, 1 Position

MPN87220-1
Active

TE Connectivity AMP Connectors AMPMODU Mod II, 87220-1, Board to Board or Cable, 1 Position, 0.100" (2.54mm) Pitch, Through Hole, Gold

$1.6300Ref. price · indicative, final on quote
87220-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87220-1 Technical Specifications
ParameterValue
SeriesAMPMODU Mod II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Positions1
Contact finish - postGold
Contact length - post0.125\" (3.18mm)
Overall contact length0.533\" (13.55mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - postFlash
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Position Count and Pitch: Why One Matters

The 87220-1: At 1 position, this header is the minimum-width member of the AMPMODU Mod II unshrouded family — compare with the 5-position 87224-5 (same pitch, same 3 A rating) for multi-circuit needs, or the 4-position dual-row 87227-2 if you need two rows at 0.100" spacing. The 30.0 µinch gold on the mating face is double the 15.0 µinch gold found on the 87224-5 and 87227-2 — a meaningful upgrade for applications that cycle the connector hundreds of times over the product life.

Frequently asked questions

What is the closest functional alternative to 87220-1?

The 87224-5 is the same unshrouded AMPMODU Mod II header with 5 positions instead of 1, same 3 A rating and 0.100" pitch, but with 15.0 µinch gold mating finish instead of 30.0 µinch. For a single-position replacement, no direct second-source exists — the 87220-1 is the only 1-position member in this series.

What connector mates with 87220-1?

Any AMPMODU Mod II female socket housing that accepts a 0.025" square post will mate with this header.
