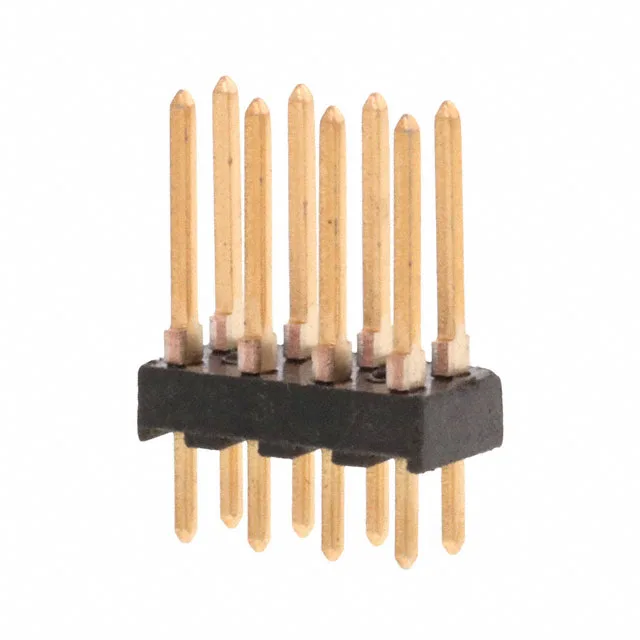

87227-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 87227-4 Header – 8 Pos, 2.54mm Pitch, Gold

MPN87227-4
Active

TE Connectivity AMPMODU Mod II, 87227-4, Header, Male Pin, 8 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Gold Mating Finish, 3 A, UL94 V-0, Black, Bulk

$4.3800Ref. price · indicative, final on quote
87227-4 datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87227-4 Technical Specifications
ParameterValue
SeriesAMPMODU Mod II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postGold
Contact length - post0.125\" (3.18mm)
Overall contact length0.533\" (13.55mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - postFlash
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Dual-row 0.100-inch header, 8 positions, unshrouded

The 87227-4 is a dual-row, unshrouded pin header from TE's AMPMODU Mod II series, with 8 positions loaded all. The through-hole termination uses gold-plated posts (flash thickness) for the solder tails.

8-position pin layout and mating compatibility

The 8 positions are arranged in two rows of 4, with 0.100" (2.54mm) row spacing. Unshrouded headers mate with standard AMPMODU Mod II receptacles or any 0.100" pitch IDC socket — the square 0.025" (0.64mm) male pins engage the receptacle's dual-beam contacts.

Active production, RoHS, and sourcing posture

Frequently asked questions

What is the specific pin layout of TE connectivity 87227-4 header?

Design engineers need to confirm pin 1 location and row spacing for PCB layout.

What is the current price and stock availability for 87227-4?

Sourcing buyers require immediate price and lead time to fill BOM lines and stay on schedule.

Is the 87227-4 RoHS compliant and what is its lifecycle status?

Compliance and long-term availability are critical for regulatory and design longevity planning.

What is the difference between 87227-4 and 87227-5 series headers?

Engineers comparing similar parts need to know if one has additional features or different specifications.

Can 87227-4 be used as a direct replacement for an existing AMPMODU header?

Maintenance techs and buyers need to verify form-fit-function compatibility without redesign.
