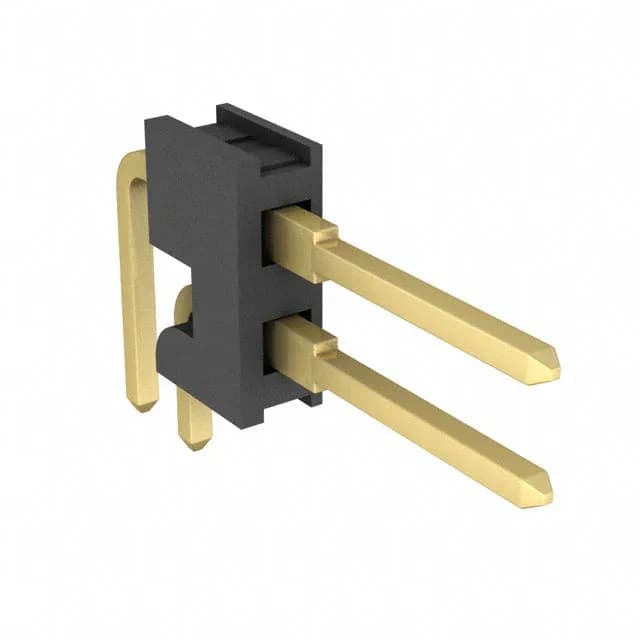

TE Connectivity AMPMODU Mod II, Header, 2 Positions, 2 Rows, 0.100" (2.54 mm) Pitch, Through Hole, Right Angle, Unshrouded, Gold Mating Finish, 3 A, UL94 V-0, ROHS3 Compliant
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Positions | 2 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 87230-1 is a TE Connectivity AMPMODU Mod II unshrouded header with 2 positions in 2 rows on a 0.100" (2.54 mm) pitch.
Two positions, two rows — the row spacing is 0.100" (2.54 mm), matching standard 0.100" grid prototyping and production boards. Contact finish is gold on both the mating surface (15.0 µ in) and the post (flash).
2 positions in 2 rows, all positions loaded.
Yes, ROHS3 compliant.
Yes, through-hole, right-angle mounting.
3 A per contact.
As an unshrouded 2x2 header on 0.100" pitch, it mates with standard AMPMODU Mod II socket housings or IDC receptacles of matching position count and pitch. The specific mating half depends on your cable or board interface.
Yes, its listed style is Board to Board or Cable.
