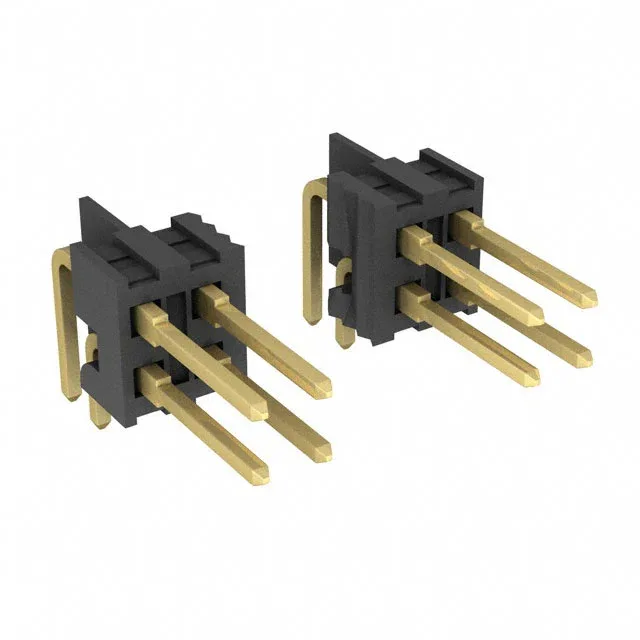

TE Connectivity AMPMODU Mod II header, 87230-6, 12 positions, 2 rows, 0.100" (2.54 mm) pitch, unshrouded, through-hole right-angle, gold-plated mating contacts, 3 A, UL94 V-0, bulk.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 87230-6: In a lab instrument or test fixture cycled a few hundred times over its life, the gold layer prevents contact fretting and keeps resistance stable. The post finish is gold flash, adequate for solder joint reliability.
This is common for board-to-board stacking where the mating receptacle provides the alignment.
Any AMPMODU Mod II receptacle or 0.100" pitch IDC socket that accepts a 0.025" square post. The unshrouded header mates with a shrouded or unshrouded receptacle; the push-pull retention means the mating half should provide the locking if needed.
