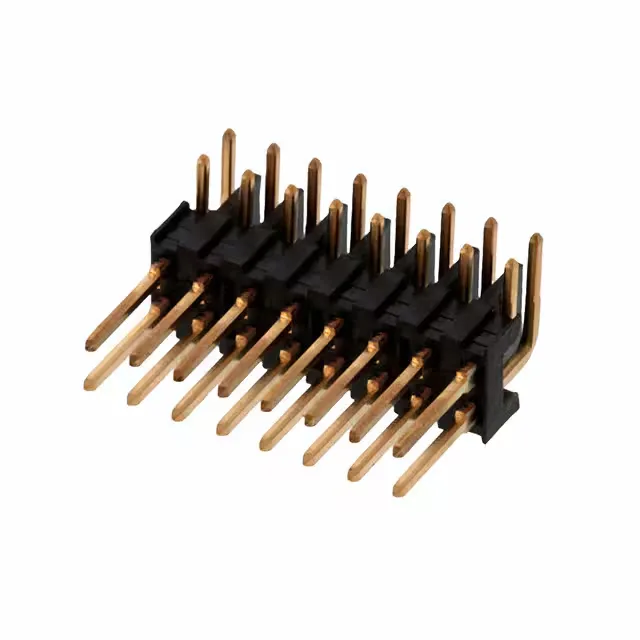

TE Connectivity AMPMODU Mod II header, 87230-8, 16 positions, 2 rows, 0.100" (2.54mm) pitch, unshrouded, right-angle through-hole, gold mating finish, 3 A per contact, UL94 V-0, RoHS compliant, Active.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The post finish is gold flash, which is adequate for solder joints but not for repeated unplugging.
The 87230-8's 0.100" pitch and unshrouded design make it a direct fit for standard 2.54mm receptacles; the 1318699-3 is a heavier-duty option for wire-to-board applications where a locking shell is needed.
The 87230-8 is an active part in TE's AMPMODU Mod II series. Submit an RFQ for a firm lead-time estimate.
The 87230-8 is a 16-position, 2-row header with all positions loaded. Pin 1 is typically marked by a square pad on the PCB footprint; the row spacing is 0.100" (2.54mm) with a 0.100" pitch within each row. Mating halves are standard 0.100" pitch receptacles.
