TE Connectivity AMPMODU Mod II unshrouded header, 7 positions, 0.100" (2.54mm) pitch, right-angle through-hole, 30 µinch gold mating contact, 3 A, UL94 V-0 black nylon housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.138\" (3.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

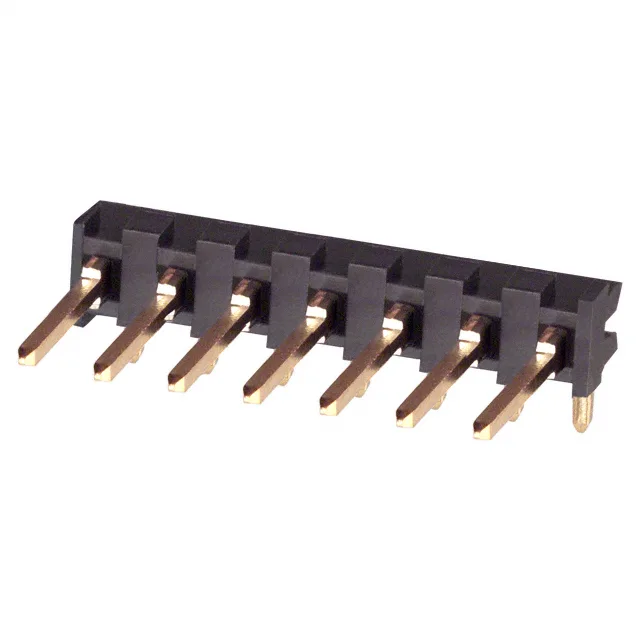

The 87232-7: The glass-filled nylon housing provides dimensional stability through wave solder.
As an unshrouded header, this part mates with AMPMODU Mod II female socket housings (such as the 5-104505 series) that accept 22-30 AWG crimp terminals. The 0.110" (2.79mm) post length suits standard 1.6mm thick PCBs with through-hole soldering.
The pin shape is square male, 0.318" mating length, 0.110" post length.
