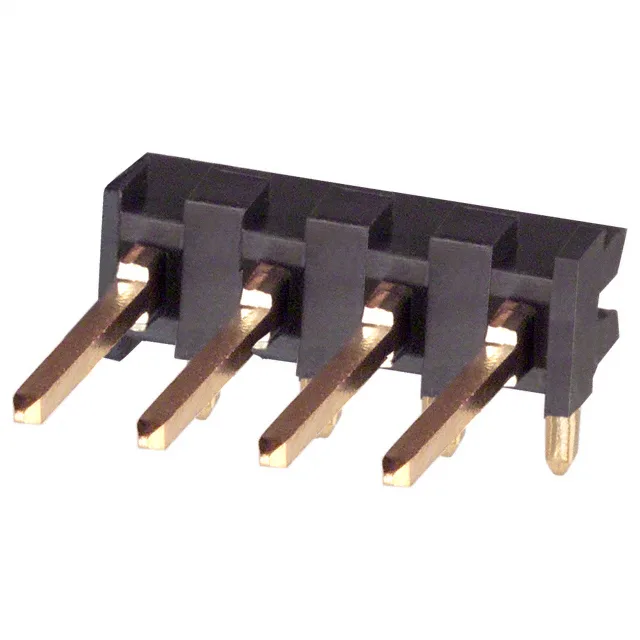

TE Connectivity AMPMODU Mod II header, order code 87233-4, 4 positions, single row, 0.100" (2.54mm) pitch, 3A, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.138\" (3.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 87233-4 is the 4-position member of TE's AMPMODU Mod II unshrouded header line, terminated through-hole right-angle for board-edge or parallel-to-PCB routing.
Bulk package, quoted per BOM quantity. Same pitch and pinout across the Mod II series; confirm the mating receptacle before committing.
The 87233-4 is available in Bulk packaging. Submit an RFQ for current pricing and lead time.
