TE Connectivity AMP Connectors 87346-5 — Pin Headers

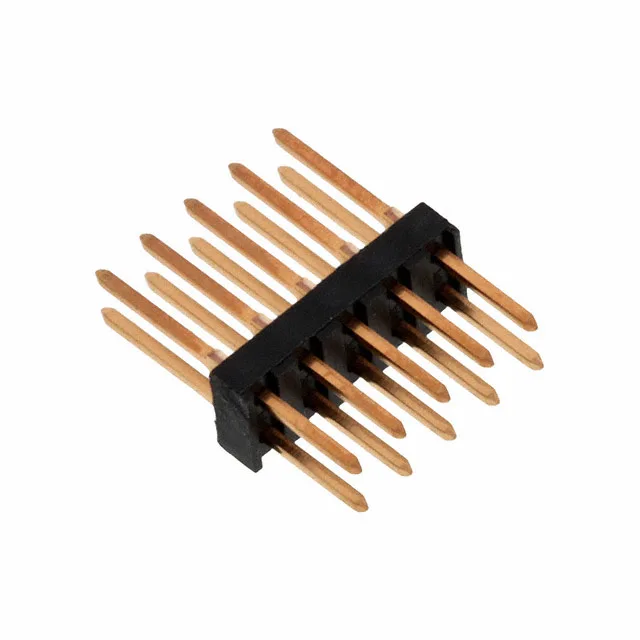

87346-5 TE Connectivity AMPMODU Mod II Header 10 Pos 2.54mm

MPN87346-5
Active

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 10 Positions, 0.100" (2.54mm) Pitch, Unshrouded, Through Hole, Solder Termination, Gold Contact Finish, Black Insulation

$3.9500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

87346-5 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded

All specifications

87346-5 additional specifications
ParameterValue
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.220\" (5.58mm)
Overall contact length0.628\" (15.95mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

0.100" pitch, 10 circuits, gold — the BOM-fit anchor

Style is listed as Board to Board or Cable, so the mating half can be either a board-mount receptacle or a crimp-to-wire housing — the unshrouded design means there's no polarizing wall, so the board layout must provide the alignment.

In a production harness, the jig or strain relief takes on the alignment duty. The push-pull fastening type means there's no latch — the connector pair stays mated by friction and the contact normal force. For applications with vibration, a secondary retention method (a wire-to-board TPA or a board-mount lock) should be considered.

Frequently asked questions

Is 87346-5 shrouded or unshrouded?

The mating receptacle must be aligned by the board layout or a separate guide.

What is the pitch and position count of 87346-5?

0.100" (2.54mm) pitch, 10 positions, dual-row. The row spacing is also 0.100" (2.54mm).
