TE Connectivity AMP Connectors 87456-2 — Connector Housings

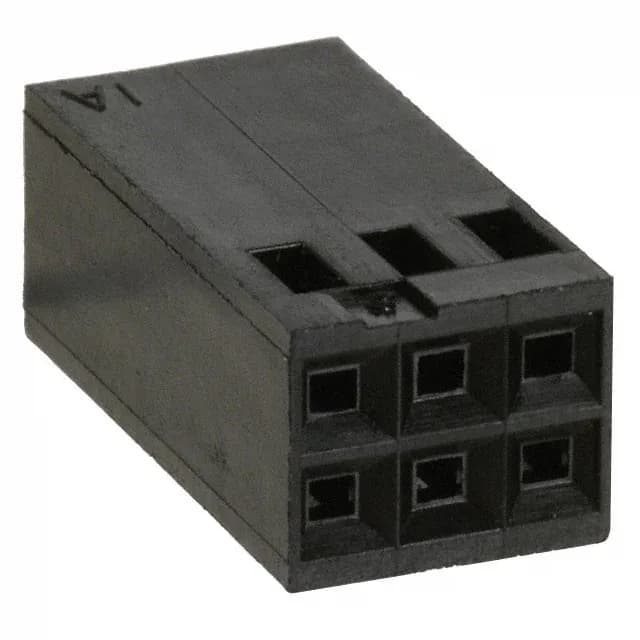

TE 87456-2 AMPMODU Mod IV Receptacle Housing, 6 Pos, 2.54mm

MPN87456-2
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 87456-2, 6 positions, 2 rows, 0.100" (2.54mm) pitch, free-hanging (in-line), crimp termination, black polyamide, -65°C to 105°C, ROHS3 compliant.

$2.3500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 87456-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

87456-2 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions6

Product details

6-Position Dual-Row Receptacle Housing for Wire Harness Assembly

The TE Connectivity 87456-2 is a 6-position, dual-row receptacle housing from the AMPMODU Mod IV series. The housing is free-hanging (in-line) with crimp termination — no PCB footprint needed, just the matching female socket contacts and a manual or automatic crimp tool. The glass-filled polyamide (nylon) body handles -65°C to 105°C, so it's at home in an automotive engine bay, an industrial cabinet, or a telecom enclosure. This is the housing only; contacts are ordered separately.

Frequently asked questions

What contacts are compatible with the 87456-2 housing?

The 87456-2 accepts AMPMODU Mod IV female socket contacts with crimp termination. The contacts are not included with the housing and must be ordered separately. Use the TE application tooling guide for the correct crimp die and insertion tool.

Is the 87456-2 RoHS compliant?

Yes, the 87456-2 is ROHS3 compliant, clearing it for use in EU and other RoHS-restricted markets.

Does the 87456-2 include pins or sockets?

No. The 87456-2 is a receptacle housing only; contacts are not included and must be ordered separately as AMPMODU Mod IV female socket crimp terminals.
