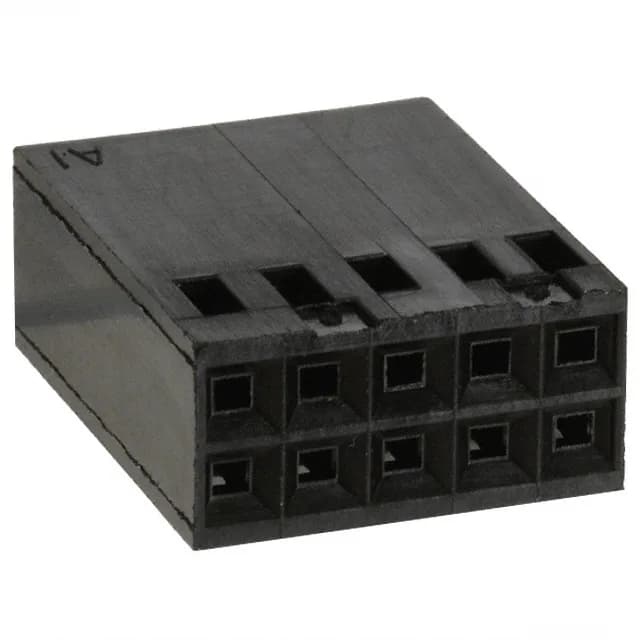

TE Connectivity AMPMODU Mod IV receptacle housing, 10 positions, dual row, 0.100" (2.54mm) pitch, free hanging in-line, crimp termination, black polyamide, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 10 |
The free-hanging in-line mounting makes it a wire-to-board or wire-to-wire interconnect, not a board-mounted header.
The crimp contacts are TE AMPMODU Mod IV female sockets (e.g., the 87421 series or similar). The housing itself provides the mechanical lock and polarization; the contact retention comes from the terminal's own lance engaging the housing cavity. Confirm the specific contact part number against your wire gauge before ordering.
The 87456-5 accepts AMPMODU Mod IV female socket contacts that are crimp-terminated. The housing does not include contacts — they must be ordered separately. Typical contact part numbers are from the TE 87421 series; confirm the specific contact for your wire gauge before purchasing.
