20-position shrouded header for board-to-board or cable duty
The 87474-2 is the 20-position member of TE Connectivity's AMPMODU Mod II header line, a dual-row shrouded male pin header rated 3 A per contact.

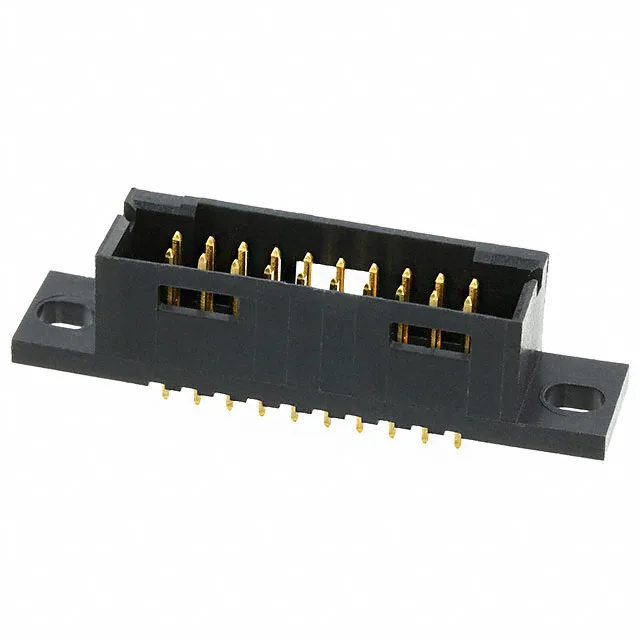

TE 87474-2 Header, 20 Pos, 2.54mm, Gold, Through Hole
MPN87474-2
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 87474-2, 20 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through hole, solder termination.
$5.1856Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the 87474-2's style and connector type?
The 87474-2 is a Board to Board or Cable style header, male pin contacts, shrouded with a detent lock fastening.
What compliance documentation is available for 87474-2?
RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors; the specific certificates are available on request.
