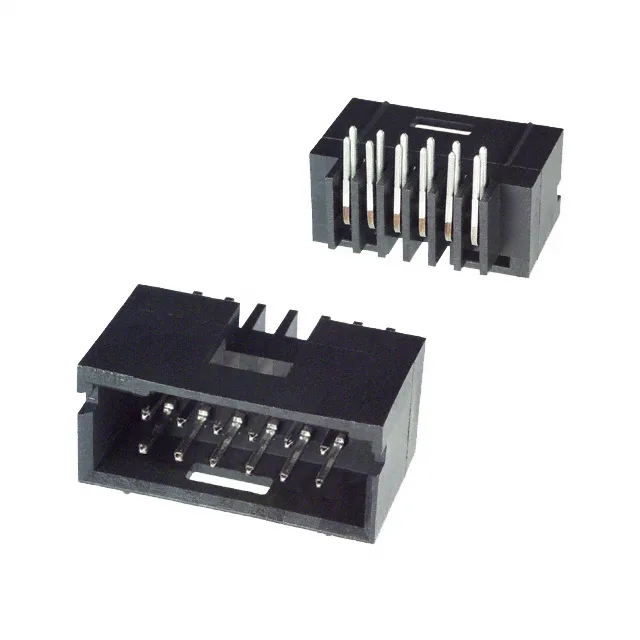

TE Connectivity AMPMODU Mod II shrouded header, 87579-3, 12 positions, 0.100" (2.54 mm) pitch, right-angle through-hole, tin-lead contacts, UL94 V-0, tray pack.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
No direct replacement is listed in the AMPMODU Mod II series; any pin-compatible substitution will require a board-level review of the mating half and footprint. Quantities and lead time are quoted per BOM line against current market availability.
The right-angle body stands 0.400" (10.16 mm) above the board, which sets the z-height clearance for the mating receptacle.
No direct pin-compatible replacement is documented within the AMPMODU Mod II series. A functional substitute would require verifying the footprint, pitch, and mating half compatibility.
