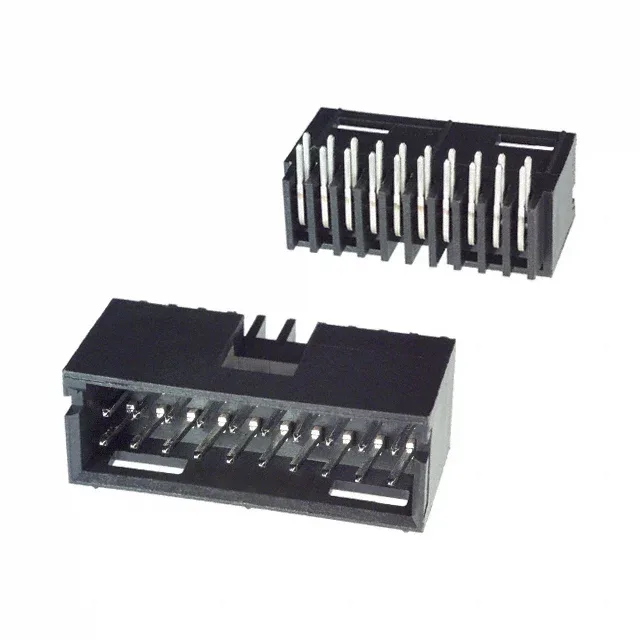

TE Connectivity AMP Connectors AMPMODU Mod II header, order code 87579-7, 20 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, tin-lead mating contacts, through-hole right-angle, solder termination, shrouded - 4 wall.
TE 87579-7 AMPMODU Mod II Header, 20-Pos, 2.54mm, Obsolete
MPN87579-7
Obsolete
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 87579-7, 20 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, tin-lead mating contacts, through-hole right-angle, solder termination, shrouded - 4 wall.
$2.6500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Where can I buy the 87579-7 and how do I get a price?
The 87579-7 is obsolete.
What is the closest pin-compatible alternative to the 87579-7 in this Pin Headers, Sockets & Housings family?
A board spin is required for any functional replacement.
