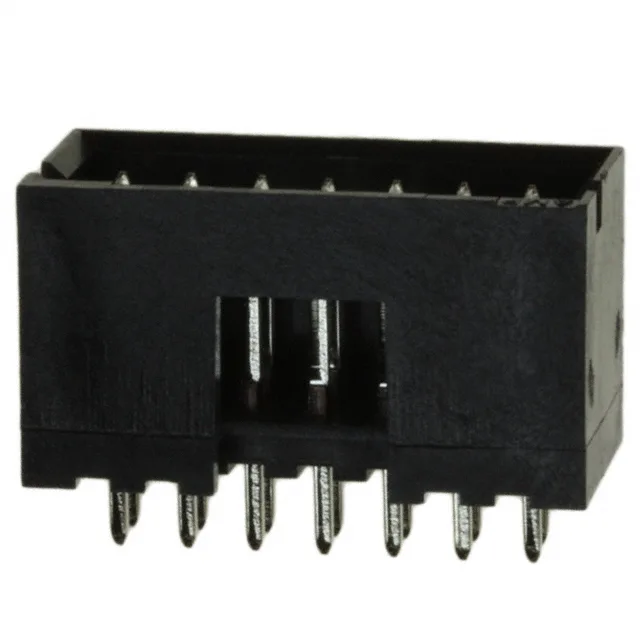

87589-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

87589-3 TE AMPMODU Mod II Header, 14-Pos, 0.100" Pitch

MPN87589-3
Obsolete

TE Connectivity AMPMODU Mod II, Header, 14 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Detent Lock, 3A, Tin-Lead Mating Finish

$1.4500Ref. price · indicative, final on quote
87589-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87589-3 Technical Specifications
ParameterValue
SeriesAMPMODU Mod II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.440\" (11.18mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.533\" (13.55mm)
Contact finish - matingTin-Lead
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board Fit and Mating Reality

Rated 3A per contact with a UL94 V-0 glass-filled nylon housing, it handles signal-level currents in equipment that needs a flame-rated connector inside the enclosure. The tin-lead mating finish at 100 µinch thickness was standard for its era; expect a moderate mating cycle life — adequate for one-time or infrequent disconnect.

Obsolete — Sourcing Options

As a shrouded male header with 0.100-inch pitch and 0.318-inch mating pin length, it mates with AMPMODU Mod II female socket housings and crimp receptacles. The detent lock engages with the matching latch on the receptacle housing. Confirm the receptacle part number against your existing BOM — the locking feature requires the correct mating half.

Frequently asked questions

How can I order the 87589-3 or check availability?

The 87589-3 is obsolete, but we source it through independent distribution. No stock-holding claim — every order is sourced per your BOM.

What is the replacement part for the obsolete 87589-3?

Any functional alternative would require a board layout review — the 0.100-inch pitch and 14-position count are common, but the shrouding and detent lock may not match. Confirm your mating half before selecting a substitute.
