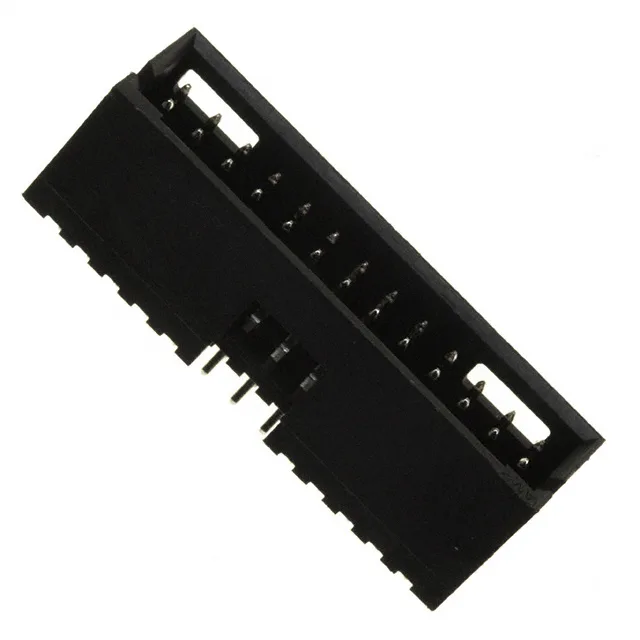

TE Connectivity AMPMODU Mod II, 26-position, 2-row, shrouded header, 0.100" (2.54mm) pitch, through-hole solder, detent lock, tin-lead mating finish, rated 3A.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 87589-9: With 26 positions loaded across two rows, the 0.100" row spacing gives you a 0.533" overall contact length — the 0.318" mating length provides solid wipe before the detent lock engages.
The 0.100" pitch and 26-position count are the critical BOM match points — verify your mating half before committing.
Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time — request an RFQ for this obsolete part.
