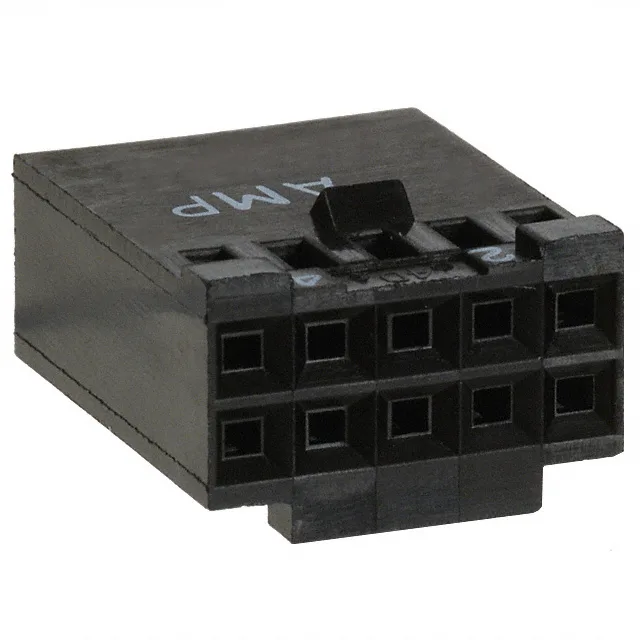

TE Connectivity AMPMODU Mod IV receptacle housing, 87631-6, 10 positions, 2 rows, 0.100" (2.54mm) pitch, 0.100" (2.54mm) row spacing, free hanging, detent lock, black thermoplastic, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 10 |
You must order the AMPMODU Mod IV female socket crimp terminals separately. The housing accepts standard AMPMODU Mod IV crimp contacts, which are terminated to wire before insertion. The housing is keyed with a detent lock that provides audible feedback when the mating header is fully seated. The dual-row arrangement gives 5 positions per row, which keeps the harness width manageable for a 10-circuit wire-to-board or wire-to-wire interconnect.
The 87631-6 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — lead time and price are confirmed at quote time.
No. The 87631-6 is a receptacle housing only — contacts are not included. You must order AMPMODU Mod IV female socket crimp terminals separately.
