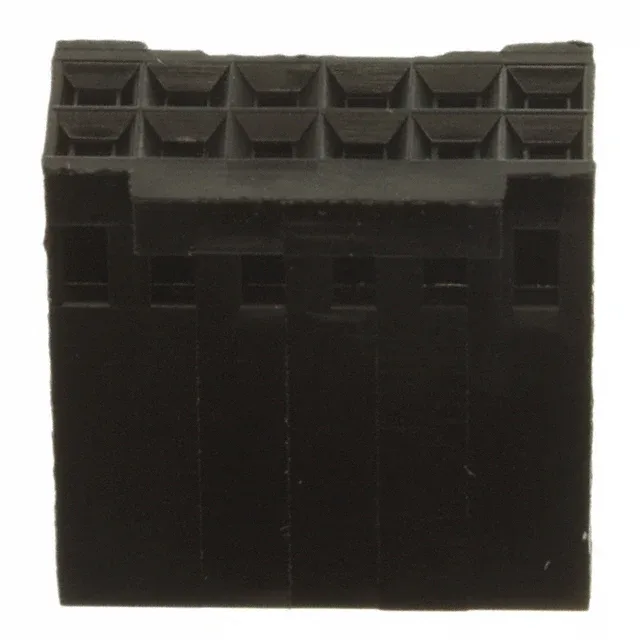

TE Connectivity AMPMODU Mod IV receptacle housing, 87631-7, 12 positions, 2 rows, 0.100" (2.54mm) pitch, free-hanging, crimp termination, detent lock, black thermoplastic, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 12 |
The 87631-7 sits at 12 positions in a dual-row layout. The same housing family includes an 8-position (87631-4), a 10-position (87631-6), and a 14-position (87631-9) variant — all sharing the same 0.100" pitch, dual-row configuration, detent lock, and free-hanging design. All are active and use the same crimp terminals.
The 87631-7 accepts AMPMODU Mod IV female socket crimp terminals designed for 0.025" square posts. The housing does not include contacts — they must be ordered separately. Use the standard AMPMODU Mod IV crimp terminal for the wire gauge in your harness.
