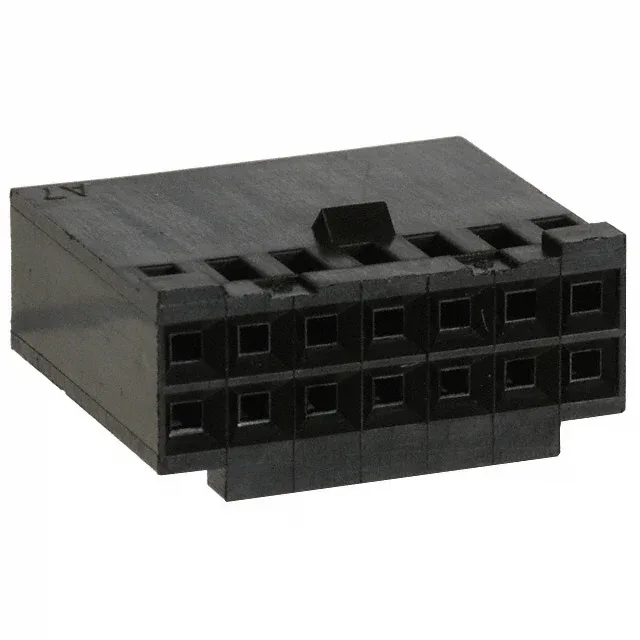

TE Connectivity AMPMODU Mod IV receptacle housing, 87631-9, 14 positions, 2 rows, 0.100" (2.54mm) pitch, 0.100" (2.54mm) row spacing, crimp termination, free-hanging, detent lock, black thermoplastic, -65°C to 105°C, RoHS.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 14 |
The housing accepts one terminal per cavity; the detent lock on the housing mates with the standard AMPMODU Mod IV shroud on the header side. The dual-row 14-position layout mirrors the pinout of the matching 14-position header.
Submit a request for current pricing and availability — confirmed at quote time.
The 87631-9 accepts AMPMODU Mod IV female crimp socket terminals for 0.100" (2.54mm) pitch headers. Contacts are not included with the housing and must be ordered separately.
Yes, the 87631-9 is RoHS compliant.
