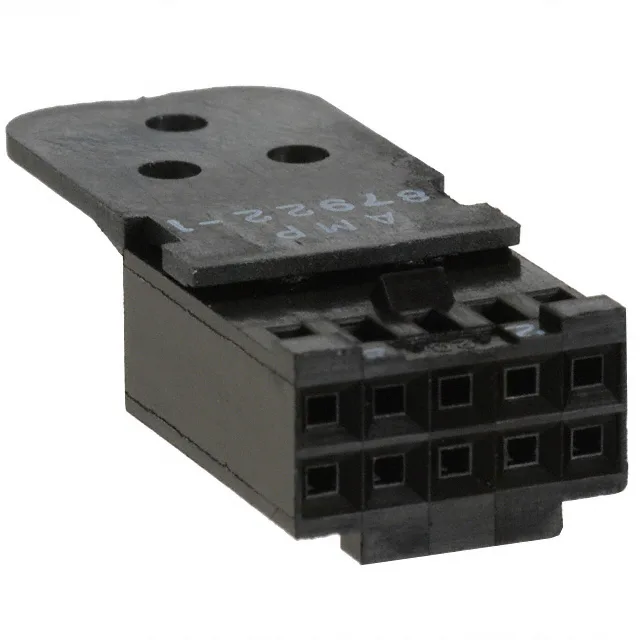

87922-1 — TE Connectivity AMP Connectors product photo

TE Connectivity 87922-1 AMPMODU Mod IV Receptacle Housing

MPN87922-1
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 10 positions, 2 rows, 0.100" (2.54mm) pitch, crimp termination, locking ramp, free hanging, black thermoplastic, strain relief, RoHS compliant.

$4.8500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

87922-1 Technical Specifications
ParameterValue
SeriesAMPMODU Mod IV
GenderMale or Female
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesStrain Relief
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions10

Product details

What mates with the 87922-1?

Contacts and termination

It accepts standard AMPMODU Mod IV crimp contacts, available in both male (pin) and female (socket) variants for 20-24 AWG wire. The crimp termination allows for field-reliable, tooled wire assembly. The integrated strain relief grips the wire jacket behind the contact crimp, reducing stress on the termination point during handling and service. For high-vibration applications, a secondary locking feature can be added with the optional TPA (Terminal Position Assurance) insert, though this is not included in the base housing.

For BOM planning, this means no immediate obsolescence risk. There is no official TE replacement or cross-reference for this exact housing — the 10-position, 0.100" pitch, dual-row, locking-ramp configuration is the standard for this AMPMODU Mod IV variant.

Frequently asked questions

Does the 87922-1 include contacts?

No, the 87922-1 is a receptacle housing only and does not include contacts. Crimp terminals must be ordered separately from the AMPMODU Mod IV contact family.

Is the 87922-1 RoHS compliant?

Yes, the 87922-1 is RoHS compliant per TE Connectivity's current compliance status.
