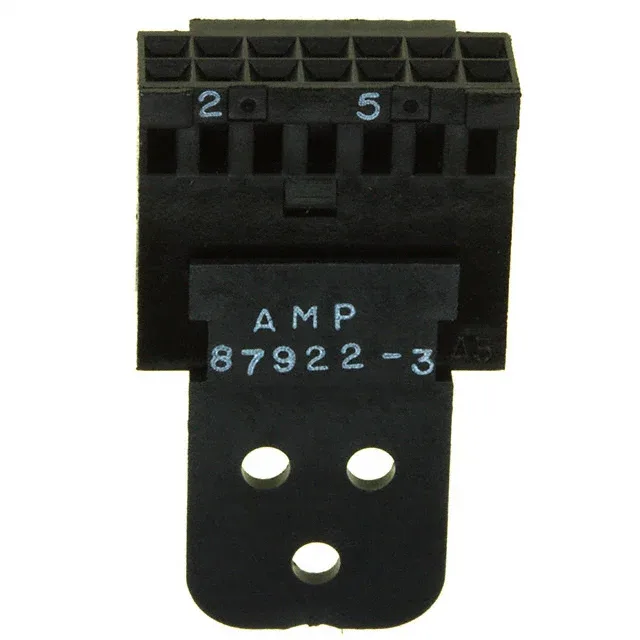

87922-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 87922-3 AMPMODU Mod IV Receptacle Housing

MPN87922-3
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 87922-3, 14 positions, dual-row, 0.100" (2.54mm) pitch and row spacing, free-hanging (in-line), locking ramp, strain relief, black thermoplastic, crimp termination, contacts not included.

$7.0300Ref. price · indicative, final on quote
87922-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

87922-3 Technical Specifications
ParameterValue
SeriesAMPMODU Mod IV
GenderMale or Female
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesStrain Relief
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions14

Product details

What This 14-Position Receptacle Housing Does in the Harness

Pitch, Row Spacing, and the Board Footprint Match

That means the mating header you pair this with — a 14-position, dual-row, 0.100" pitch through-hole or SMT header — will drop onto the same board footprint every time. No special routing or oddball spacing to chase down.

You crimp your own male or female contacts (the housing accepts both) using the standard AMPMODU Mod IV crimp terminals, then insert them into the cavities. The strain relief feature on the back of the housing secures the wire bundle after termination, preventing the crimp from taking the load during cable flex or pull.

Locking Ramp and Strain Relief — Field-Mateable Retention

That's the primary retention in a free-hanging harness where vibration or cable movement could otherwise walk the connector pair apart. The strain relief, moulded into the housing, clamps the wire jacket after the contacts are loaded, so the crimp barrel doesn't carry the tensile load.

Frequently asked questions

What is the pitch and row spacing of 87922-3?

Both the pitch and row spacing are 0.100" (2.54mm), matching the standard AMPMODU Mod IV grid. This is a dual-row, 14-position receptacle housing.

What type of contacts are compatible with 87922-3?

The housing accepts AMPMODU Mod IV crimp terminals in either male or female contact type. Contacts are not included with the housing and must be ordered separately.

Does 87922-3 include a strain relief feature?

Yes, the housing includes an integrated strain relief that secures the wire bundle after termination, protecting the crimp-to-wire junction from pull-out forces.

Where can I buy 87922-3 and get a price?

Submit a request for current pricing and availability — confirmed at quote time.
