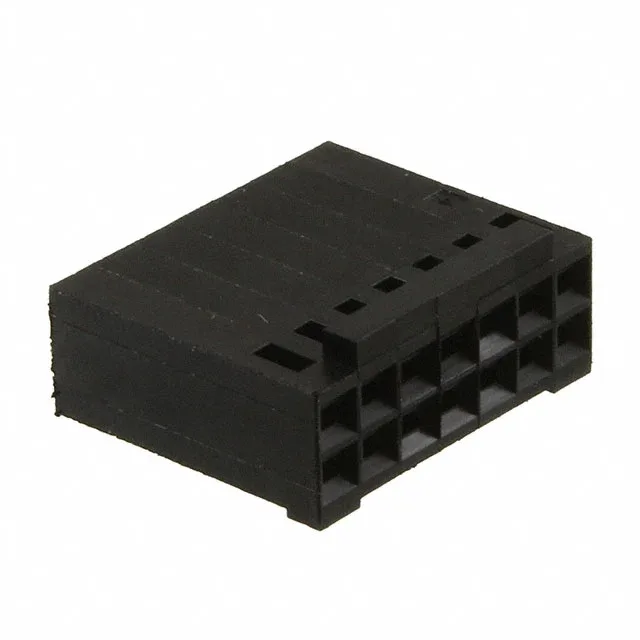

87977-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 87977-5 AMPMODU Mod IV Receptacle Housing, 14-Pos 2.54mm

MPN87977-5
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 14 positions, 2 rows, 0.100" (2.54mm) pitch, free hanging crimp termination, black polyamide, -65°C to 105°C, contacts not included.

$3.3700Ref. price · indicative, final on quote
87977-5 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87977-5 Technical Specifications
ParameterValue
SeriesAMPMODU Mod IV
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions14

Product details

14-Position Dual-Row Housing at 2.54mm Pitch

The buyer must order the AMPMODU Mod IV crimp socket terminals separately — the housing alone is the plastic shell with the cavity retention features.

Crimp Termination — Wire-Side Assembly Only

The dual-row layout at 2.54mm row spacing gives 14 positions in a compact footprint that fits standard 0.100"-pitch headers. The black colour is the only colour variant listed for this order code — no natural or other colour options in this MPN.

Active Production — No Lifecycle Concern

No last-time-buy notice or phase-out is listed for this order code.

Frequently asked questions

Where can I buy 87977-5 and how do I get a price?

No stock-holding or immediate-shipment claim is made here.

Does 87977-5 include contacts?

No — the listing explicitly notes 'Contacts Not Included'. The housing ships as an empty shell; you must order the AMPMODU Mod IV crimp socket terminals separately.

What is the mating connector for 87977-5?

The 87977-5 is a female receptacle housing that mates with a 2.54mm-pitch dual-row pin header from the AMPMODU Mod IV or compatible 0.100" header series. The exact header order code depends on your position count, mounting style (through-hole or SMT), and plating requirement.

Is 87977-5 compatible with TE AMPMODU contacts?

Yes — the housing is designed to accept AMPMODU Mod IV crimp socket contacts. The terminal part number is not listed on this housing record, but any AMPMODU Mod IV female crimp socket rated for the wire gauge and current of your application will fit the cavity.
