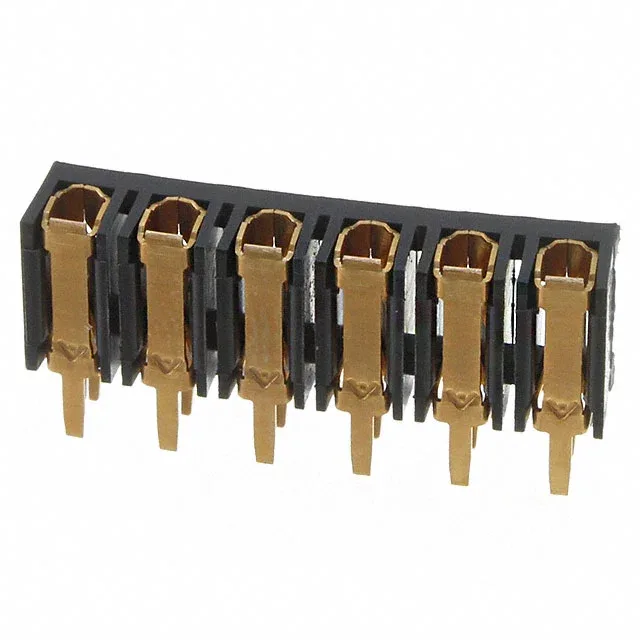

TE Connectivity AMP Connectors AMPMODU Mod I receptacle, order code 87982-6, 6 positions, single row, 0.156" (3.96 mm) pitch, gold mating contacts, through-hole, solder termination, push-pull fastening.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Gold |
| Contact length - post | 0.112\" (2.84mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 87982-6 is the 6-position member of TE's AMPMODU Mod I receptacle line, a single-row board-to-board or cable interconnect with push-pull fastening.
The push-pull latch eliminates the need for hardware in low-vibration environments.
The housing is rated UL94 V-2. RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors for this part.
