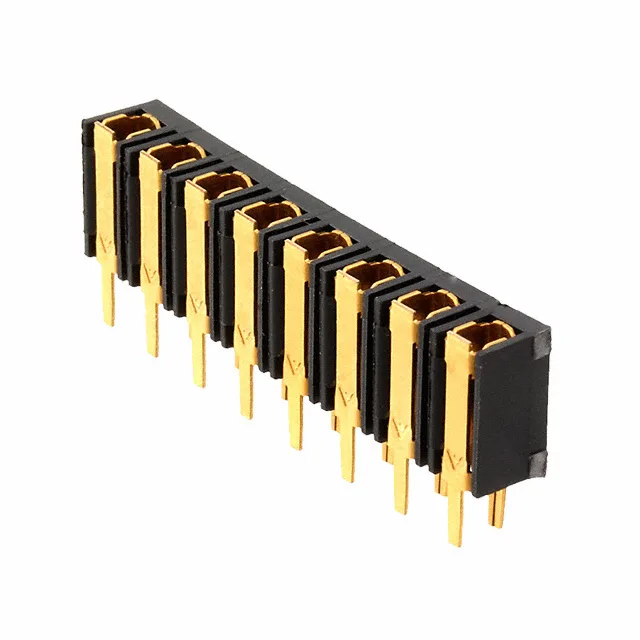

TE Connectivity AMP Connectors AMPMODU Mod I, 8-position, single-row, 0.156 inch (3.96 mm) pitch, through-hole receptacle, gold-plated phosphor bronze contacts, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom Entry |
| Fastening type | Push-Pull |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Gold |
| Contact length - post | 0.112\" (2.84mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 87984-8: The 0.156 inch (3.96 mm) pitch sets the PCB hole pattern and the per-contact current ceiling. In a single-row, 8-position layout, the board footprint matches standard AMPMODU Mod I male headers — confirm the mating header's pin spacing and row count before committing the BOM.
Both share the 0.156 inch pitch, gold plating, through-hole termination, and push-pull fastening.
The mating pitch is 0.156 inch (3.96 mm), single row, which sets the board footprint and the per-contact current ceiling.
Yes, it is ROHS3 compliant per the current directive.
No — the fastening type is push-pull, meaning the retention relies on the interference fit of the square pins in the socket, not a secondary latch.
