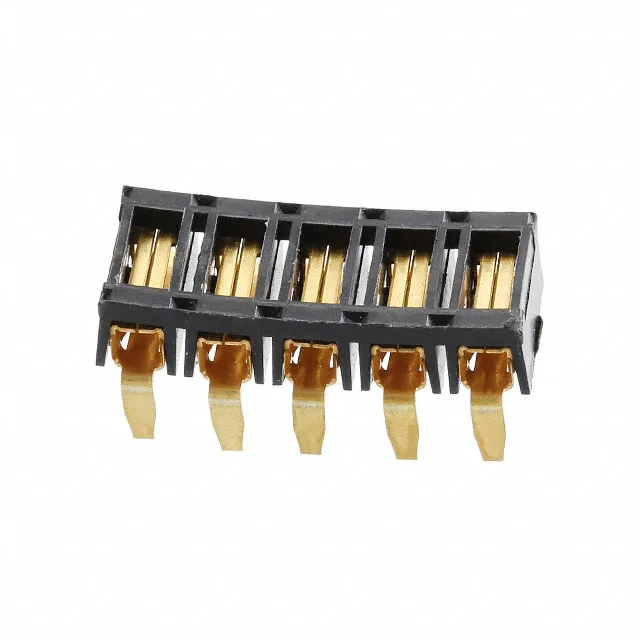

TE Connectivity AMPMODU Mod I receptacle, order code 87988-5, 5 positions, single row, 0.156" (3.96mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.175\" (4.45mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Gold |
| Contact length - post | 0.145\" (3.68mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 87988-5 is the 5-position member of the AMPMODU Mod I receptacle line, listed for board-to-board or cable interconnect duty.
The single-row layout and 0.156" pitch keep the board footprint compact — the 0.175" insulation height clears low-profile enclosures. Gold-on-gold mating interface (30.0µin) supports repeated connect-disconnect cycles without fretting corrosion, and the phosphor bronze contact spring maintains normal force over temperature.
The style is Board to Board or Cable, and the series is AMPMODU Mod I.
