TE Connectivity AMP Connectors AMPMODU shunt, order code 881545-2, 2 positions (1 x 2), 0.100" (2.54mm) pitch, female sockets, 3 A, gold-plated contacts, 30.0µin (0.76µm) finish, black thermoplastic glass-filled housing, UL94 V-0, bulk package.
| Parameter | Value |
|---|---|
| Type | Open Top, Grip |
| Series | AMPMODU |
| Current rating | 3A |
| Color | Black |

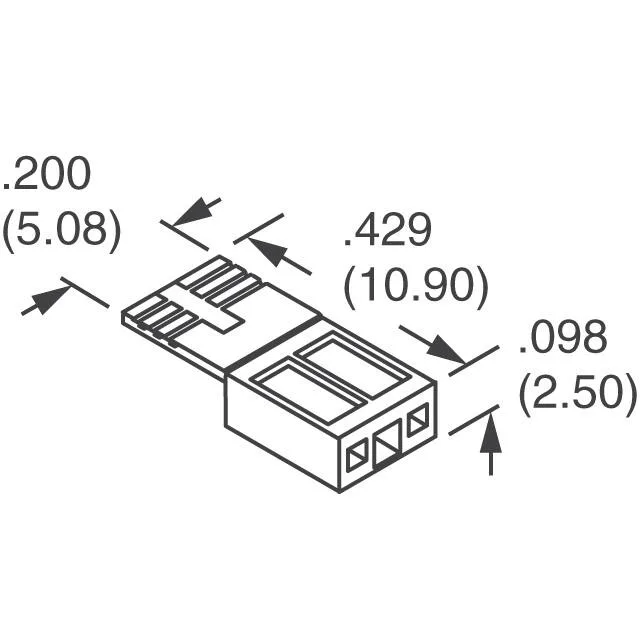

| Height | 0.429\" (10.90mm) |
| Housing material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female Sockets |
| Package | Bulk |
| Contact finish | Gold |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions or pins | 2 (1 x 2) |
Within the AMPMODU 881545 family, the 881545-2 carries 30.0µin gold on a black housing, while the 881545-1 and 881545-5 use 15.0µin gold on black and natural housings respectively — the pitch, current rating, and 0.429" (10.90mm) height are shared across the three. The 1-881545-2 is a lower-profile sibling at 0.228" (5.80mm) height with the same 30.0µin gold and black housing.
The 881545-1 shares the same pitch, current rating, and height but uses 15.0µin gold plating instead of 30.0µin.
