8-Circuit Barrier Strip for Power Distribution

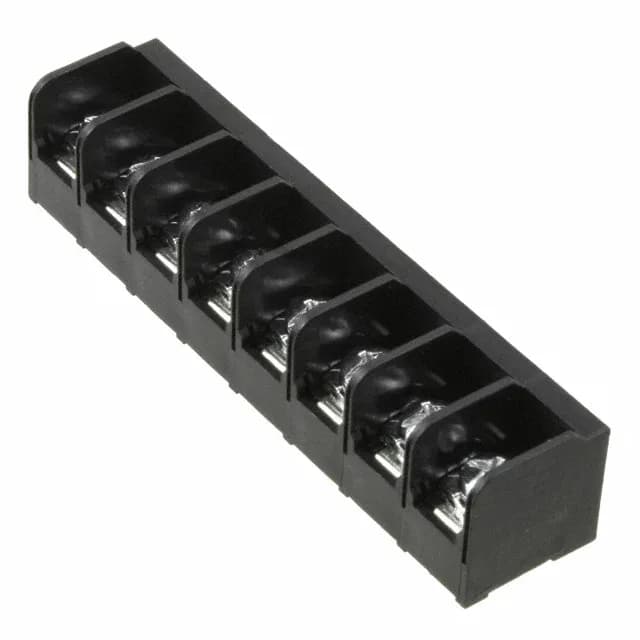

The 8PCV-08-006: It carries a 30 A per-circuit rating at 600 V, so it handles branch circuits and mains-level isolation without derating for typical ambient temperatures within its -40°C to 120°C operating range. The 0.438" (11.12 mm) pitch gives you enough spacing between terminals for 10-18 AWG wire — the screw terminals with captive plate accept stripped wire without loose hardware, and the three-wall barrier (Tri-Barrier) prevents accidental shorting between adjacent circuits during wiring or maintenance. Through-hole PC pins on the bottom side let you solder it directly to a PCB for a permanent board-level connection.
The 30 A per-circuit rating at 600 V means this strip can carry a full branch circuit on each position — it's not a signal-level interconnect. The 0.438" (11.12 mm) pitch is wider than typical 0.325" or 0.375" barrier strips, which means the board footprint is larger but the creepage distance between terminals is higher — a practical advantage when you're routing 600 V between adjacent circuits in a humid or dusty cabinet. Screws with captive plate mean the pressure plate stays captured in the terminal body when the screw is loosened — no loose washers to drop into the panel, and the plate distributes clamping force across the conductor to prevent cold flow of stranded wire under the screw head.
