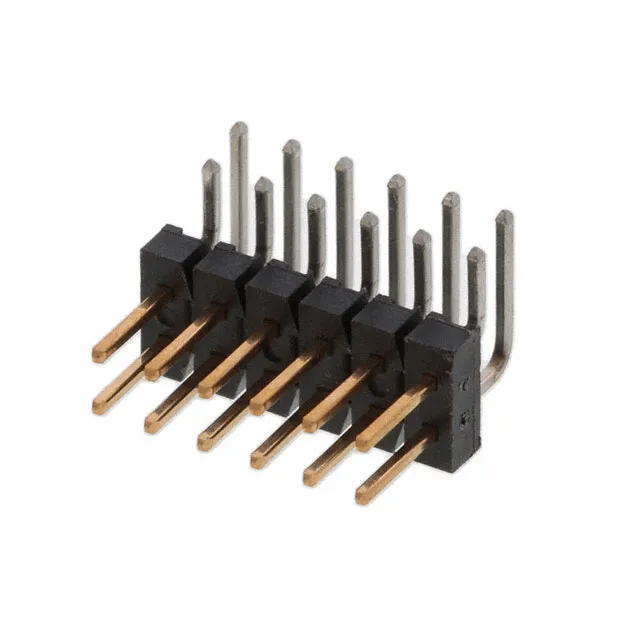

9-103326-0-06 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

9-103326-0-06 TE Connectivity AMPMODU Mod II Header, 12 Pos

MPN9-103326-0-06
Active

TE Connectivity AMPMODU Mod II, Header, Breakaway, 12 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Unshrouded, Gold Mating Finish, 3 A

$1.3200Ref. price · indicative, final on quote
9-103326-0-06 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

9-103326-0-06 Technical Specifications
ParameterValue
SeriesAMPMODU Mod II
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.238\" (6.05mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 9-103326-0-06: All 12 positions are loaded, so every pin is present for the BOM circuit count. Being unshrouded means there is no alignment wall around the pins — the mating receptacle must be guided by the housing or a separate shroud.

Unshrouded vs Shrouded: Why It Matters for the Fit

Unlike the shrouded 1379030-3 (12 positions, friction lock, 0.100" pitch) which has a four-wall shroud and a board lock, this 9-103326-0-06 is unshrouded with a push-pull fastening. The shrouded version adds alignment and a locking feature for vibration resistance, but takes up more board space. If your existing harness uses an unshrouded receptacle, this header is the direct fit.

Frequently asked questions

Is 9-103326-0-06 a shrouded or unshrouded header?

It is unshrouded — there is no alignment wall around the pins. The mating receptacle must be guided by its own housing or a separate shroud.

What is the pitch and number of positions of 9-103326-0-06?

0.100" (2.54mm) pitch, 12 positions, dual-row, all positions loaded.

Is 9-103326-0-06 RoHS compliant?

Yes, it is RoHS compliant per the manufacturer listing.

Where can I buy 9-103326-0-06?

Availability and current pricing confirmed at quote time.
