DIP socket, 14-pin, 0.100" pitch
The 9-1437535-1: Operating temperature range -55°C to 125°C, UL94 V-0 rated housing.
Obsolete — sourcing and alternatives
No stock-holding claim — sourced per request.

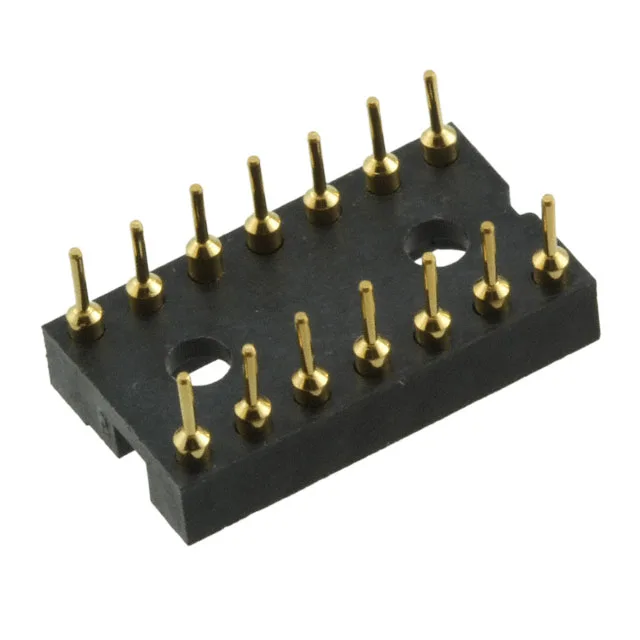

TE 9-1437535-1 DIP Socket, 14-Pin, 0.100" Pitch, Obsolete
MPN9-1437535-1
Obsolete
TE Connectivity AMP Series 500 DIP socket, order code 9-1437535-1, 14 positions (2 x 7), 0.100" (2.54 mm) pitch, gold mating contacts, through-hole solder termination, closed frame, tube package.
$1.3900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Contact material - post | Copper Alloy |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 25.0µin (0.63µm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 14 (2 x 7) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to the 9-1437535-1?
No pin-compatible alternative is documented by the manufacturer. Any functional replacement would require a different package or pinout — a board layout change is expected.
