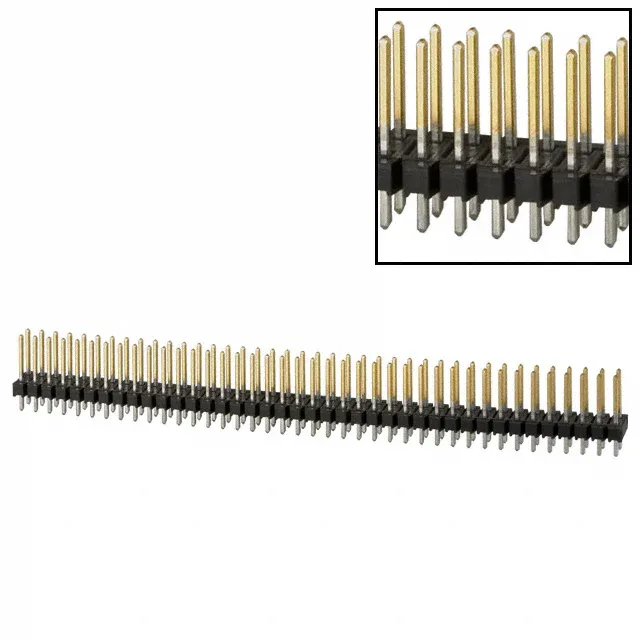

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, 80 positions, dual-row, 0.100" (2.54 mm) pitch, unshrouded, through-hole solder termination, gold-plated mating contacts, 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 80 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The unshrouded design and push-pull fastening mean the header has no locking ramp or shroud wall — the mating receptacle relies on friction retention. This is typical for breakaway headers where the user snaps off sections to the desired position count, though this 80-position variant is loaded fully.
Yes, it is RoHS compliant per the manufacturer's status.
