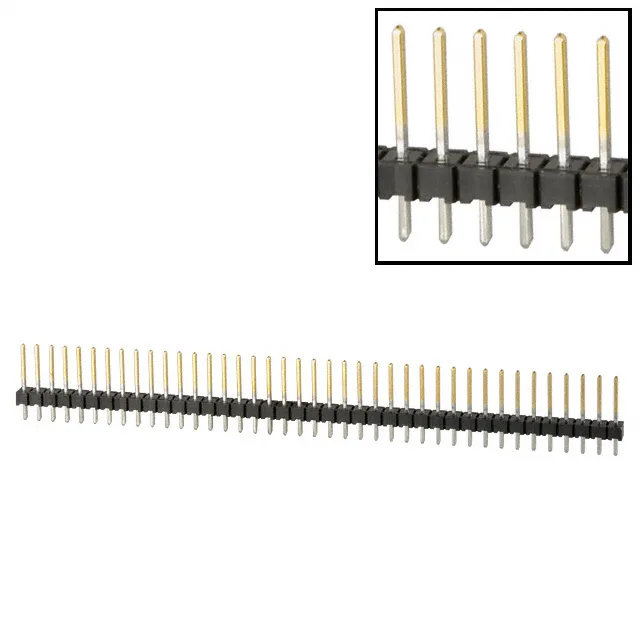

9-146276-0-04 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

9-146276-0-04 TE Connectivity AMPMODU Mod II Header 4 Pos

MPN9-146276-0-04
Active

TE Connectivity AMPMODU Mod II unshrouded breakaway header, 4 positions, 0.100" (2.54mm) pitch, through-hole solder termination, male pin, gold mating finish, 3A rating, UL94 V-0 LCP housing.

$0.5700Ref. price · indicative, final on quote
9-146276-0-04 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

9-146276-0-04 Technical Specifications
ParameterValue
SeriesAMPMODU Mod II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.533\" (13.55mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Rated 3A per contact, with gold on the mating face (15.0µin) and tin on the solder posts (100.0µin).

The closest functional second-source is 1376779-2 — also a 4-position, 2.54mm-pitch, unshrouded header with gold mating finish. The key difference: 1376779-2 uses 8.00µin gold on the mating face vs. 15.0µin on the 9-146276-0-04.

Overall contact length is 0.533" (13.55mm), with 0.318" (8.08mm) of mating pin length. The unshrouded header mates with any AMPMODU Mod II receptacle or female socket strip on the same pitch.

Frequently asked questions

Where can I buy 9-146276-0-04?

9-146276-0-04 is available through independent distribution. Submit an RFQ for current pricing and lead time — we source against your BOM quantity and confirm availability at quote time.

What is the mating connector for 9-146276-0-04?

The push-pull fastening means the mating half provides the retention.
