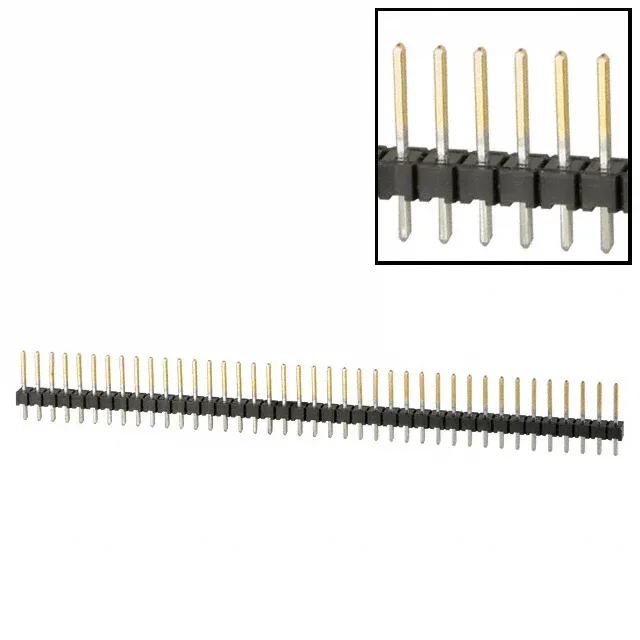

Board-to-Board or Cable Header — 40 Positions, 2.54 mm Pitch
It mates with matching receptacles for board-to-board or cable connections, and the breakaway construction allows the strip to be snapped to a custom pin count for non-standard layouts.
Unshrouded Design and Breakaway Flexibility
Unshrouded headers expose the male pins, allowing direct mating with crimp-socket housings or IDC receptacles. The absence of a shroud reduces the header's footprint on the board, which is useful in dense layouts where clearance is tight. The breakaway feature means the 40-position strip can be divided into smaller sections (e.g., 2, 3, 4, 5, 6, 8, 10, 12, 20 positions) by snapping along the scored grooves between pins. This reduces inventory complexity for designs requiring multiple pin counts from the same series. The black insulation colour provides visual contrast for inspection.
The base product number is 146280, which can be used to locate related variants (e.g., different plating options or pin counts) within the AMPMODU Mod II family.
